دیتاشیت ATSAM4LC8CA-CFUR
مشخصات دیتاشیت
| نام دیتاشیت | SAM4L Series Summary |
|---|---|
| حجم فایل | 3018.533 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 176 |
دانلود دیتاشیت SAM4L Series Summary |

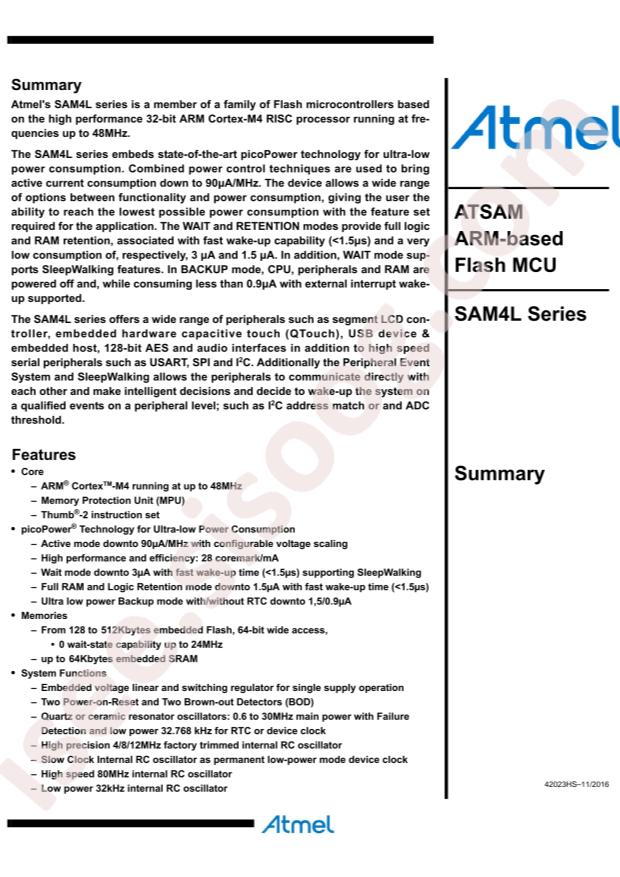

SAM4L Series Summary Datasheet |
|---|
مشخصات
- CAN: -
- I2C: -
- I2S: -
- SPI: -
- RoHS: true
- EEPROM: -
- CPU Core: ARM Cortex-M4
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 64KB
- Watchdog: Yes
- ADC (Bit): 12bit
- DAC (Bit): 10bit
- Datasheet: Microchip Tech ATSAM4LC8CA-CFUR
- PWM (Bit): -
- 8Bit Timer: -
- LCD Module: Yes
- UART/USART: -
- 16Bit Timer: -
- 32Bit Timer: -
- Real-Time Clock: -
- CPU Maximum Speed: 48MHz
- GPIO Ports Number: 75
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: LCD/LED Driver;DMA;WDT;LIN(Local Interconnect Network);IrDA
- Program Memory Type: FLASH
- Direct Memory Access: Yes
- Program Storage Size: 512KB
- Universal Serial Bus: Yes
- communication protocol: -
- Operating Voltage Range: 1.68V~3.6V
- Infrared Data Association: Yes
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: BGA-100
- Manufacturer: Microchip Tech
- Series: SAM4L
- Packaging: Tray
- Part Status: Active
- Core Processor: ARM® Cortex®-M4
- Core Size: 32-Bit
- Speed: 48MHz
- Connectivity: I²C, IrDA, LINbus, SPI, UART/USART, USB
- Peripherals: Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT
- Number of I/O: 75
- Program Memory Size: 512KB (512K x 8)
- EEPROM Size: -
- Voltage - Supply (Vcc/Vdd): 1.68V ~ 3.6V
- Data Converters: A/D 15x12b; D/A 1x10b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 100-VFBGA
- Supplier Device Package: 100-VFBGA (7x7)
- Base Part Number: ATSAM4LC8
- detail: ARM® Cortex®-M4 SAM4L Microcontroller IC 32-Bit 48MHz 512KB (512K x 8) FLASH 100-VFBGA (7x7)
