LT3762EUFD#PBF دیتاشیت

LT3762EUFD#PBF

مشخصات دیتاشیت

نام دیتاشیت LT3762EUFD#PBF
حجم فایل 122.645 کیلوبایت
نوع فایل pdf
تعداد صفحات 34

مشاهده دیتاشیت LT3762EUFD#PBF

دانلود دیتاشیت

سایر مستندات

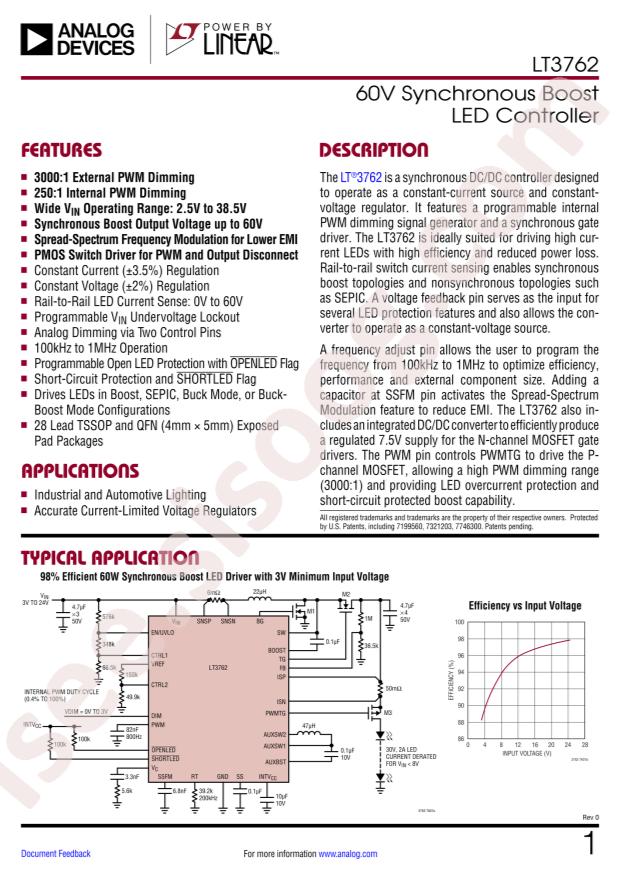

LT3762 Datasheet 34 pages

مشخصات فنی

  • RoHS: true
  • Type: DC-DCController
  • Dimming: Analog;PWM
  • Category: Nixie Tube Driver/LED Driver/LED Drivers
  • Channels: 1
  • Topology: SEPIC,Step-down,boost converter
  • Datasheet: Analog Devices LT3762EUFD#PBF
  • Input Voltage: 2.5V~38.5V
  • Output Voltage: 60V
  • Switch Frequency: 90kHz~1.24MHz
  • Operating temperature: -40°C~+125°C
  • Package: QFN-28-EP(4x5)
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Internal Switch(s): No
  • Number of Outputs: 1
  • Voltage - Supply (Min): 2.5V
  • Voltage - Supply (Max): 38.5V
  • Voltage - Output: 60V
  • Current - Output / Channel: -
  • Frequency: 90kHz ~ 1.24MHz
  • Applications: Automotive, Industrial Lighting
  • Mounting Type: Surface Mount
  • Package / Case: 28-WFQFN Exposed Pad
  • Supplier Device Package: 28-QFN (4x5)
  • detail: LED Driver IC 1 Output DC DC Controller SEPIC, Step-Down (Buck), Step-Up (Boost) Analog, PWM Dimming 28-QFN (4x5)
