دیتاشیت ATSAM4CMP8CC-AU
مشخصات دیتاشیت

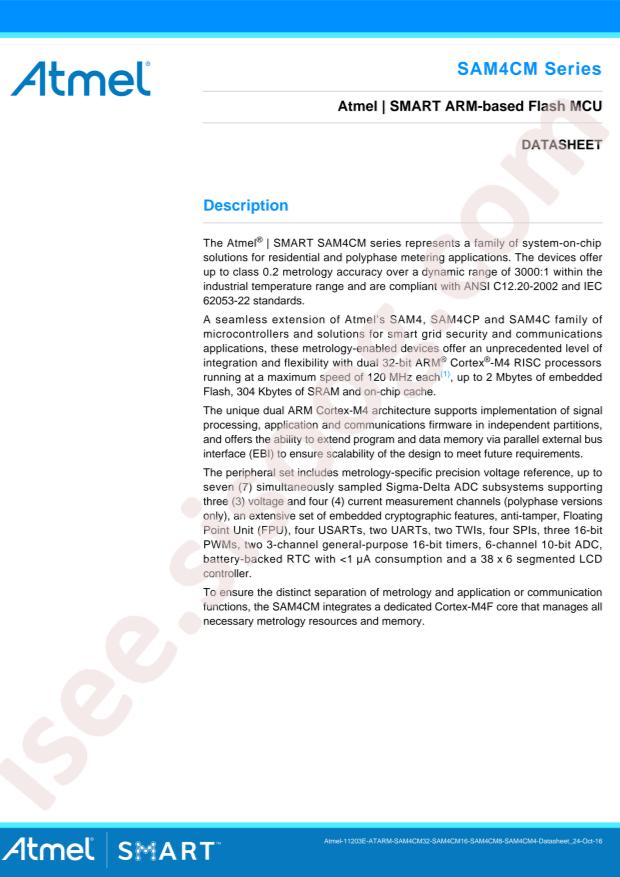

| نام دیتاشیت | SAM4CM Series Datasheet |
|---|---|
| حجم فایل | 5131.508 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 1174 |
دانلود دیتاشیت SAM4CM Series Datasheet |
SAM4CM Series Datasheet Datasheet |
|---|
مشخصات
- CAN: -
- I2C: -
- I2S: -
- SPI: -
- RoHS: true
- EEPROM: -
- CPU Core: ARMOther series
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 128KB
- Watchdog: Yes
- ADC (Bit): 10bit
- DAC (Bit): -
- Datasheet: Microchip Tech ATSAM4CMP8CC-AU
- PWM (Bit): -
- 8Bit Timer: -
- LCD Module: Yes
- UART/USART: -
- 16Bit Timer: -
- 32Bit Timer: -
- Real-Time Clock: -
- CPU Maximum Speed: 120MHz
- GPIO Ports Number: 52
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: IrDA;WDT;DMA;LCD/LED Driver;PWM
- Program Memory Type: FLASH
- Direct Memory Access: Yes
- Program Storage Size: 512KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 1.62V~3.6V
- Infrared Data Association: Yes
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: LQFP-100(14x14)
- Manufacturer: Microchip Tech
- Series: SAM4CM
- Packaging: Tray
- Part Status: Active
- Core Processor: ARM® Cortex®-M4F
- Core Size: 32-Bit Dual-Core
- Speed: 120MHz
- Connectivity: EBI/EMI, I²C, IrDA, SPI, UART/USART
- Peripherals: Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT
- Number of I/O: 52
- Program Memory Size: 512KB (512K x 8)
- EEPROM Size: -
- Voltage - Supply (Vcc/Vdd): 1.62V ~ 3.6V
- Data Converters: A/D 6x10b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 100-LQFP
- Supplier Device Package: 100-LQFP (14x14)
- Base Part Number: ATSAM4CM
- detail: ARM® Cortex®-M4F SAM4CM Microcontroller IC 32-Bit Dual-Core 120MHz 512KB (512K x 8) FLASH 100-LQFP (14x14)
