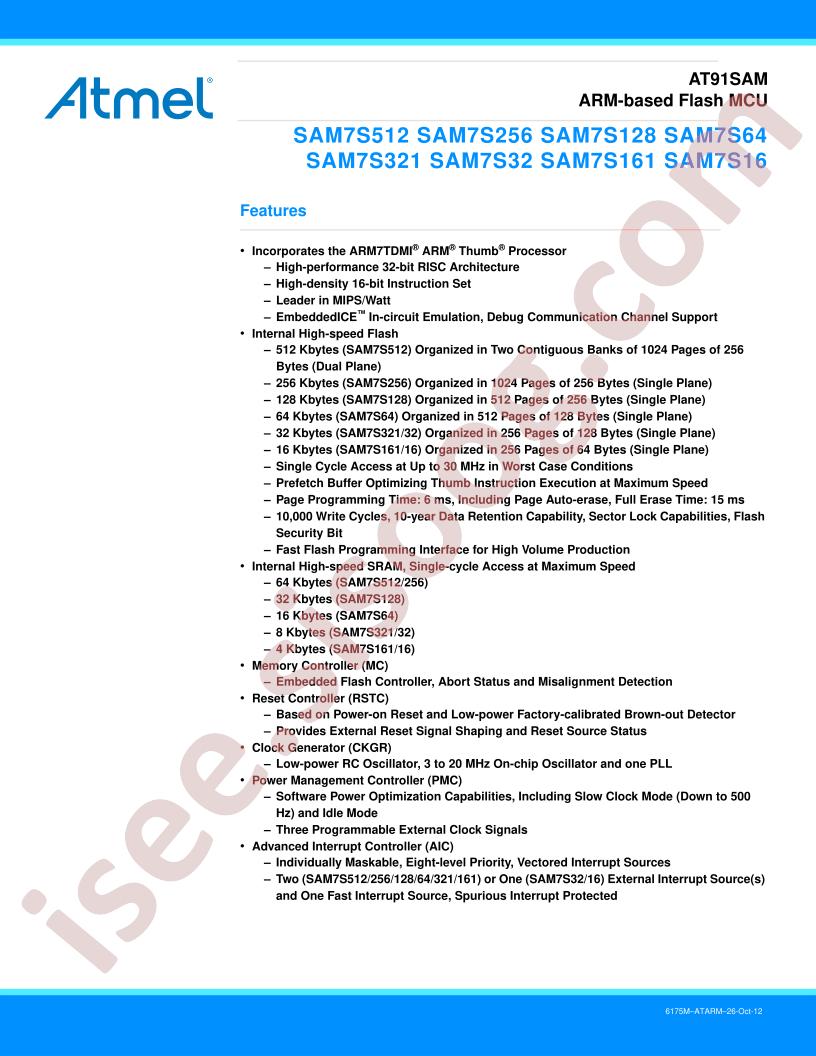

AT91SAM Datasheet دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | AT91SAM Datasheet |
|---|---|
| حجم فایل | 4091.662 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 775 |
دانلود دیتاشیت AT91SAM Datasheet |
دانلود دیتاشیت |
|---|
سایر مستندات
AT91SAM7S64C-AU-999 284 pages
مشخصات فنی
- CAN: -
- I2C: -
- I2S: -
- SPI: -
- RoHS: true
- EEPROM: -
- CPU Core: ARMOther series
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 32KB
- Watchdog: Yes
- ADC (Bit): 10bit
- DAC (Bit): -
- Datasheet: Microchip Tech AT91SAM7S128D-MU-999
- PWM (Bit): -
- 8Bit Timer: -
- UART/USART: -
- 16Bit Timer: -
- 32Bit Timer: -
- Real-Time Clock: -
- CPU Maximum Speed: 55MHz
- GPIO Ports Number: 32
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: DMA;WDT
- Program Memory Type: FLASH
- Direct Memory Access: Yes
- Program Storage Size: 128KB
- Universal Serial Bus: Yes
- communication protocol: -
- Operating Voltage Range: 1.65V~1.95V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: QFN-64(9x9)
- Manufacturer: Microchip Tech
- Series: SAM7S
- Packaging: Cut Tape (CT)
- Part Status: Discontinued at Digi-Key
- Core Processor: ARM7®
- Core Size: 16/32-Bit
- Speed: 55MHz
- Connectivity: I²C, SPI, SSC, UART/USART, USB
- Peripherals: Brown-out Detect/Reset, DMA, POR, PWM, WDT
- Number of I/O: 32
- Program Memory Size: 128KB (128K x 8)
- EEPROM Size: -
- Voltage - Supply (Vcc/Vdd): 1.65V ~ 1.95V
- Data Converters: A/D 8x10b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 64-VFQFN Exposed Pad
- Supplier Device Package: 64-QFN (9x9)
- Base Part Number: AT91SAM7S128
- detail: ARM7® SAM7S Microcontroller IC 16/32-Bit 55MHz 128KB (128K x 8) FLASH 64-QFN (9x9)
