LT1507CS8-3.3#PBF دیتاشیت

مشخصات دیتاشیت

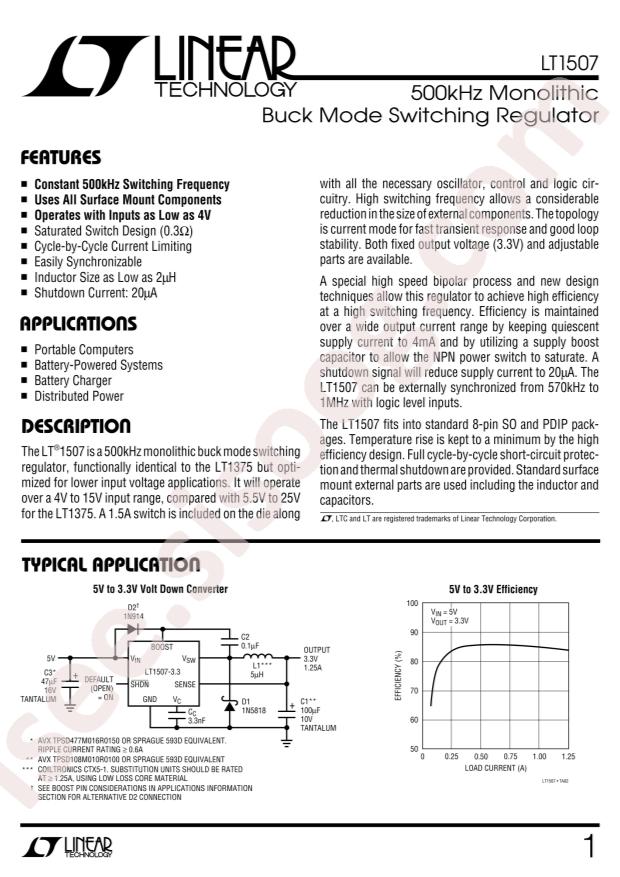

دانلود دیتاشیت LT1507CS8-3.3#PBF	دانلود دیتاشیت

LT1507 20 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: Analog Devices LT1507CS8-3.3#PBF
Output Type: Fixed
Input Voltage: 4V~16V
Output Voltage: 3.3V
Number of Outputs: 1
Switching Frequency: 500kHz
Output Current (Max): 1.5A
Operating Temperature: 0°C~+70°C@(TA)
Synchronous Rectification: NO
Package: SOP-8
Manufacturer: Analog Devices
Series: -
Packaging: Tube
Part Status: Active
Output Configuration: Positive
Voltage - Input (Min): 4V
Voltage - Input (Max): 16V
Voltage - Output (Min/Fixed): 2.42V
Voltage - Output (Max): 14.88V
Current - Output: 1.5A
Frequency - Switching: 500kHz
Synchronous Rectifier: No
Mounting Type: Surface Mount
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 8-SOIC
Base Part Number: LT1507
detail: Buck Switching Regulator IC Positive Adjustable 2.42V 1 Output 1.5A 8-SOIC (0.154", 3.90mm Width)
