دیتاشیت LT1764EFE-3.3#PBF
مشخصات دیتاشیت
| نام دیتاشیت | LT1764 Series |
|---|---|
| حجم فایل | 293.69 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 20 |
دانلود دیتاشیت LT1764 Series |
LT1764 Series Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Analog Devices LT1764EFE-3.3#PBF
- Output Type: Fixed
- Output Current: 3A
- Output Voltage: 3.3V
- Dropout Voltage: 660mV@(3A)
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 20V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 5mA
- Power Supply Rejection Ratio (PSRR): 63dB@(120Hz)

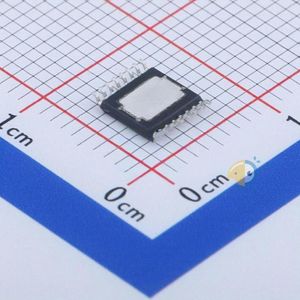

- Package: TSSOP-16
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Configuration: Positive
- Number of Regulators: 1
- Voltage - Input (Max): 20V
- Voltage - Output (Min/Fixed): 3.3V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.45V @ 3A
- Current - Output: 3A
- Current - Quiescent (Iq): 5mA
- Current - Supply (Max): 200mA
- PSRR: 63dB (120Hz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature, Reverse Polarity
- Mounting Type: Surface Mount
- Package / Case: 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Supplier Device Package: 16-TSSOP-EP
- Base Part Number: LT1764
- detail: Linear Voltage Regulator IC 1 Output 3A 16-TSSOP-EP
