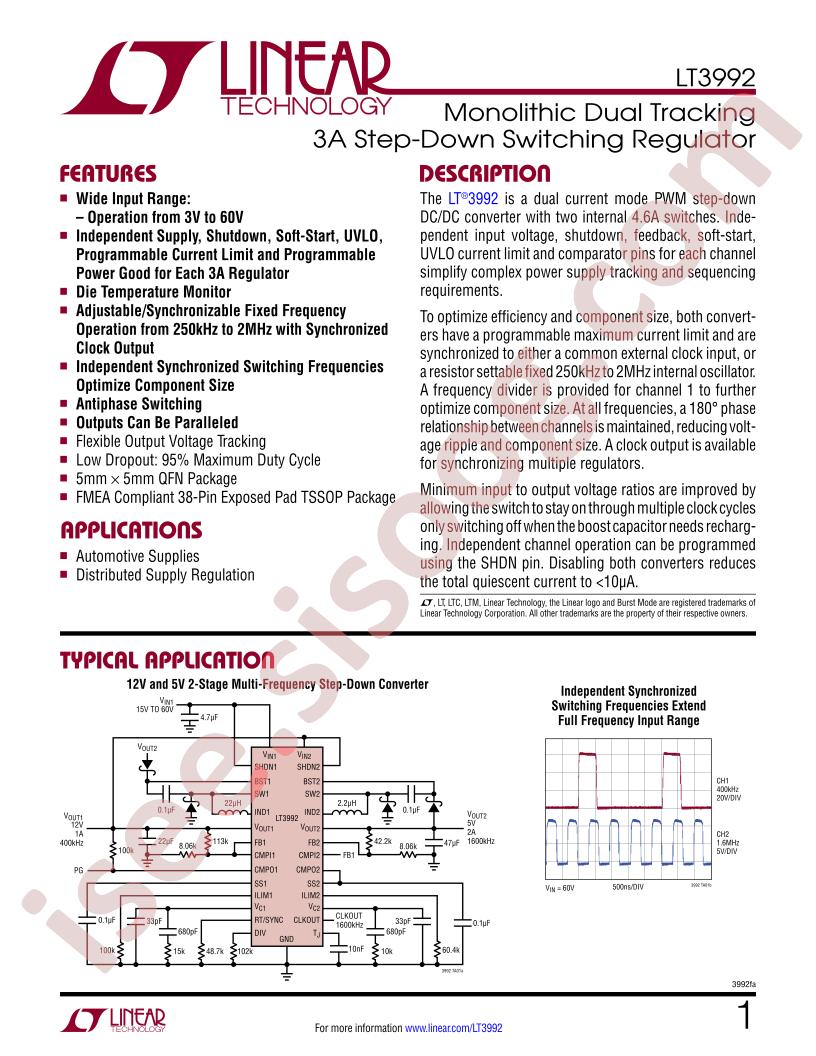

LT3992 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LT3992
|
|
حجم فایل
|
678.079
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
36
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:
Analog Devices LT3992IUH#PBF
-
Output Type:
Adjustable
-
Input Voltage:
3V~60V
-
Output Voltage:
0.8V~57V
-
Number of Outputs:
2
-
Switching Frequency:
2.5MHz
-
Output Current (Max):
3A
-
Operating Temperature:
-40°C~+125°C@(TJ)
-
Synchronous Rectification:
NO
-
Package:
QFN-32-EP(5x5)
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Output Configuration:
Positive
-
Voltage - Input (Min):
3V
-
Voltage - Input (Max):
60V
-
Voltage - Output (Min/Fixed):
0.8V
-
Voltage - Output (Max):
57V
-
Current - Output:
3A
-
Frequency - Switching:
110kHz ~ 2.5MHz
-
Synchronous Rectifier:
No
-
Mounting Type:
Surface Mount
-
Package / Case:
32-WFQFN Exposed Pad
-
Supplier Device Package:
32-QFN (5x5)
-
Base Part Number:
LT3992
-
detail:
Buck Switching Regulator IC Positive Adjustable 0.8V 2 Output 3A 32-WFQFN Exposed Pad
