دیتاشیت LTC7813HUH#PBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC7813 Datasheet |
|---|---|
| حجم فایل | 1575.438 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 42 |
دانلود دیتاشیت LTC7813 Datasheet |

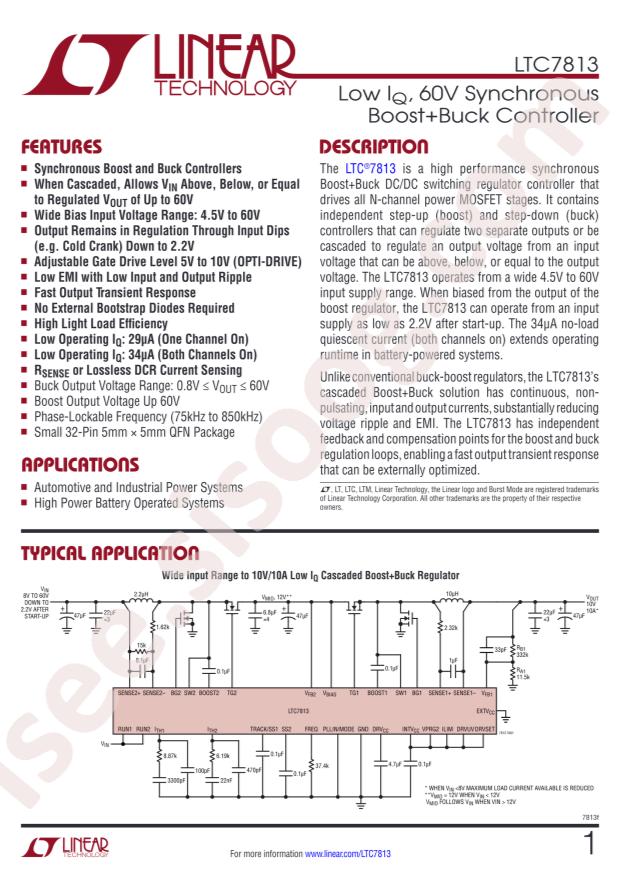

LTC7813 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Function: boost converterType;Step-down type
- Topology: Step-down;Boost
- Datasheet: Analog Devices LTC7813HUH#PBF
- Input Voltage: 4.5V~60V
- Duty Cycle (Max): 96%;99%
- Number of Outputs: 2
- Switching Frequency: 835kHz;535kHz
- Operating Temperature: -40°C~+150°C@(TJ)
- Synchronous Rectification: Yes
- Package: QFN-32-EP(5x5)
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Type: Transistor Driver
- Output Configuration: Positive
- Output Phases: 1
- Voltage - Supply (Vcc/Vdd): 4.5V ~ 60V
- Frequency - Switching: 105kHz ~ 835kHz, 350kHz ~ 535kHz
- Synchronous Rectifier: Yes
- Clock Sync: No
- Serial Interfaces: -
- Control Features: Enable, Frequency Control, Power Good, Soft Start, Tracking
- Mounting Type: Surface Mount
- Package / Case: 32-WFQFN Exposed Pad
- Supplier Device Package: 32-QFN (5x5)
- Base Part Number: LTC7813
- detail: Buck, Boost Regulator Positive Output Step-Up, Step-Down DC-DC Controller IC 32-QFN (5x5)
