دیتاشیت LT1585ACT#PBF

LT1585A, LT1585A-3.3

مشخصات دیتاشیت

نام دیتاشیت LT1585A, LT1585A-3.3
حجم فایل 168.906 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

دانلود دیتاشیت LT1585A, LT1585A-3.3

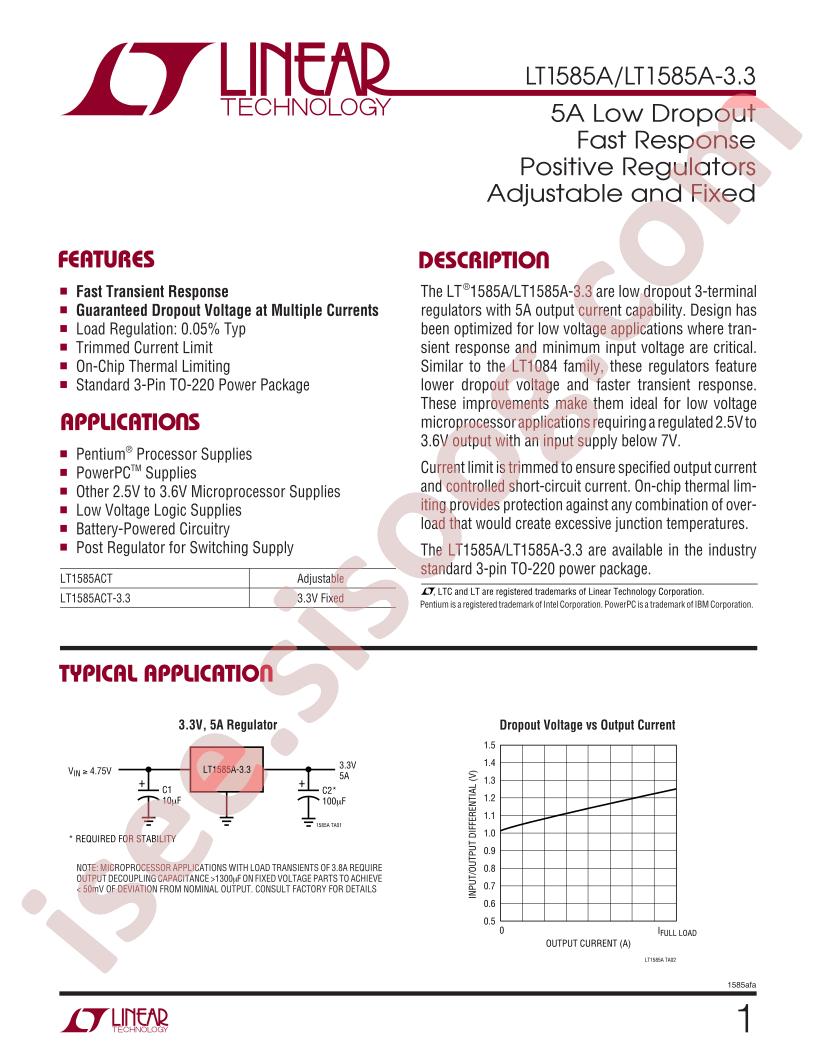

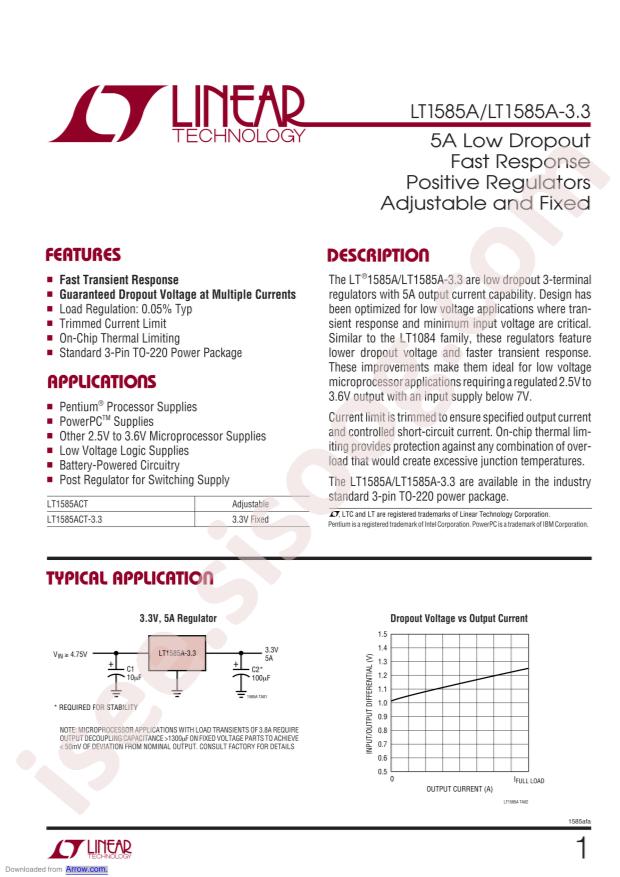

LT1585A, LT1585A-3.3 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Analog Devices LT1585ACT#PBF
  • Output Type: Adjustable
  • Output Current: 5A
  • Output Voltage: 1.25V~5.6V
  • Dropout Voltage: 1.4V@(5A)
  • Output Polarity: Positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 7V
  • Operating Temperature: 0°C~+125°C
  • Quiescent Current (Ground Current): 10mA
  • Power Supply Rejection Ratio (PSRR): 72dB@(120Hz)
  • Package: TO-220
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Output Configuration: Positive
  • Number of Regulators: 1
  • Voltage - Input (Max): 7V
  • Voltage - Output (Min/Fixed): 1.25V
  • Voltage - Output (Max): 5.6V
  • Voltage Dropout (Max): 1.4V @ 5A
  • Current - Output: 5A
  • Current - Quiescent (Iq): 10mA
  • PSRR: 72dB (120Hz)
  • Control Features: -
  • Protection Features: Over Current, Over Temperature, Short Circuit
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3
  • Supplier Device Package: TO-220-3
  • Base Part Number: LT1585
  • detail: Linear Voltage Regulator IC 1 Output 5A TO-220-3
