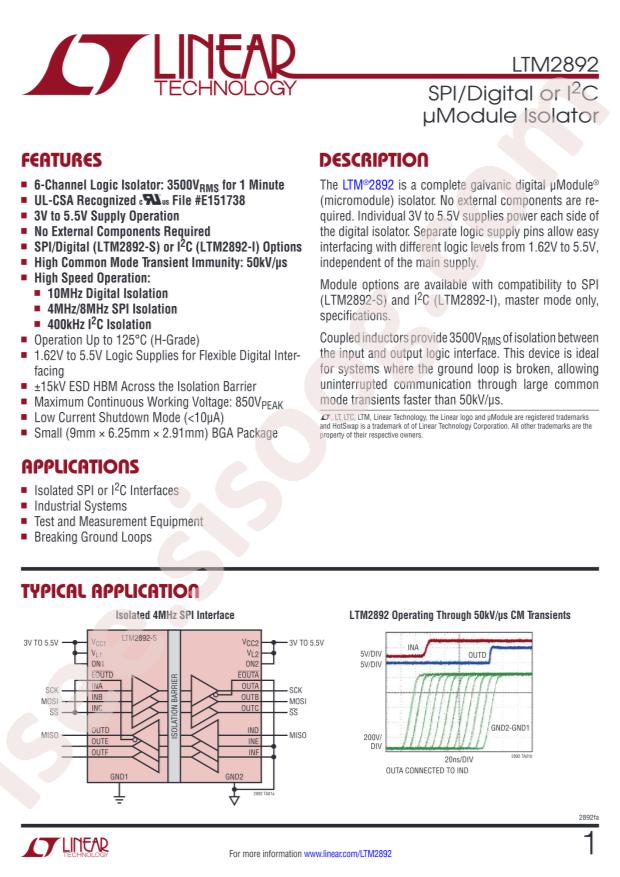

LTM2892HY-S#PBF دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LTM2892HY-S#PBF
|
|
حجم فایل
|
97.672
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
38
|
مشخصات فنی
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Digital Isolators
-
Datasheet:
Analog Devices LTM2892HY-S#PBF
-
Applications:
SPI
-
Supply Voltage:
3V~5.5V
-
Forward Channel:
3
-
Reverse channel:
3
-
Number of Channels:
6
-
Isolation Technology:
Magnetic isolation
-
Operating Temperature:
-40°C~+125°C
-
Voltage Isolation or Not:
Without voltage isolation
-
Package:
BGA-24
-
Manufacturer:
Analog Devices
-
Series:
µModule®
-
Packaging:
Tray
-
Part Status:
Active
-
Technology:
Magnetic Coupling
-
Type:
SPI
-
Isolated Power:
No
-
Inputs - Side 1/Side 2:
3/3
-
Channel Type:
Unidirectional
-
Voltage - Isolation:
3500Vrms
-
Common Mode Transient Immunity (Min):
50kV/µs
-
Data Rate:
4MHz, 8MHz
-
Propagation Delay tpLH / tpHL (Max):
100ns, 100ns
-
Pulse Width Distortion (Max):
-
-
Rise / Fall Time (Typ):
3ns, 3ns
-
Voltage - Supply:
3V ~ 5.5V
-
Mounting Type:
Surface Mount
-
Package / Case:
24-BBGA
-
Supplier Device Package:
24-BGA (9x6.25)
-
Base Part Number:
LTM2892
-
detail:
SPI Digital Isolator 3500Vrms 6 Channel 4MHz, 8MHz 50kV/µs CMTI 24-BBGA
