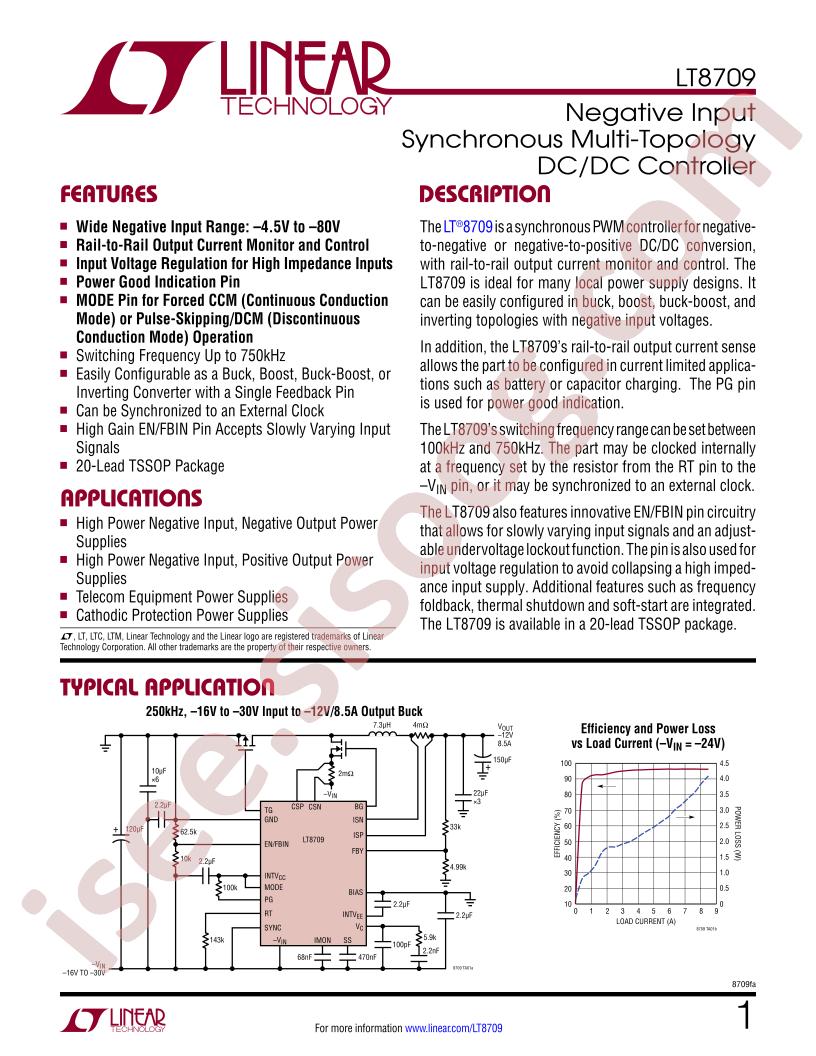

LT8709 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LT8709
|
|
حجم فایل
|
801.974
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
48
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Controllers
-
Function:
boost converterType;Step-down type;Buck-boost type
-
Topology:
Step-down;Boost;Step-down-Boost
-
Datasheet:
Analog Devices LT8709IFE#PBF
-
Input Voltage:
-4.5V~-80V
-
Duty Cycle (Max):
-
-
Number of Outputs:
1
-
Switching Frequency:
750kHz
-
Operating Temperature:
-40°C~+125°C@(TJ)
-
Synchronous Rectification:
Yes
-
Package:
TSSOP-20-EP
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Output Type:
Transistor Driver
-
Output Configuration:
Positive or Negative
-
Output Phases:
1
-
Voltage - Supply (Vcc/Vdd):
-4.5V ~ -80V
-
Frequency - Switching:
100kHz ~ 750kHz
-
Synchronous Rectifier:
Yes
-
Clock Sync:
Yes
-
Serial Interfaces:
-
-
Control Features:
Enable, Frequency Control, Power Good, Soft Start
-
Mounting Type:
Surface Mount
-
Package / Case:
20-TSSOP (0.173", 4.40mm Width) Exposed Pad
-
Supplier Device Package:
20-TSSOP-EP
-
Base Part Number:
LT8709
-
detail:
Buck, Boost, Buck-Boost Regulator Positive or Negative Output Step-Up, Step-Down, Step-Up/Step-Down DC-DC Controller IC 20-TSSOP-EP
