دیتاشیت LTC2358HLX-18#PBF

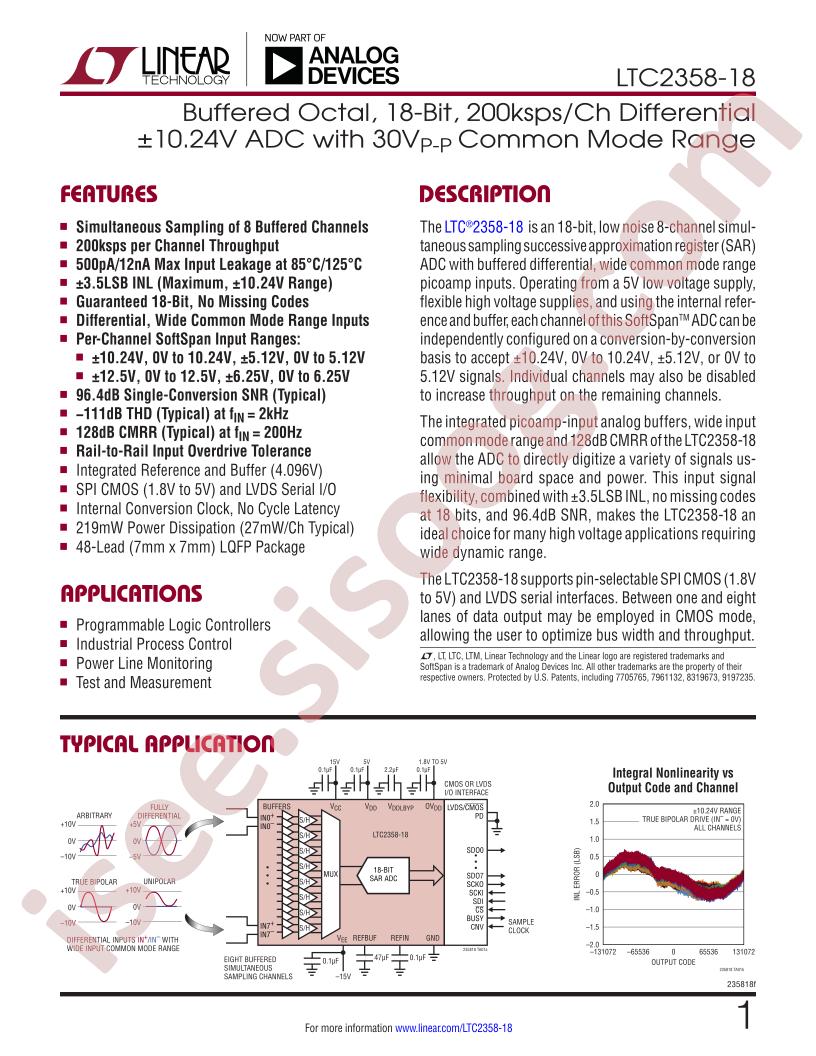

LTC2358-18 Datasheet

مشخصات دیتاشیت

نام دیتاشیت LTC2358-18 Datasheet
حجم فایل 2254.032 کیلوبایت
نوع فایل pdf
تعداد صفحات 38

دانلود دیتاشیت LTC2358-18 Datasheet

LTC2358-18 Datasheet Datasheet

مشخصات

  • Manufacturer: Linear Technology/Analog Devices
  • Series: SoftSpan™
  • Packaging: Tray
  • Part Status: Active
  • Number of Bits: 18
  • Sampling Rate (Per Second): 200k
  • Number of Inputs: 8
  • Input Type: Differential, Pseudo-Differential, Single Ended
  • Data Interface: LVDS - Serial, SPI
  • Configuration: S/H-MUX-ADC
  • Ratio - S/H:ADC: 1:1
  • Number of A/D Converters: 1
  • Architecture: SAR
  • Reference Type: External, Internal
  • Voltage - Supply, Analog: 7.5V ~ 38V
  • Voltage - Supply, Digital: 1.71V ~ 5.25V
  • Features: Simultaneous Sampling
  • Operating Temperature: -40°C ~ 125°C (TA)
  • Package / Case: 48-LQFP
  • Supplier Device Package: 48-LQFP (7x7)
  • Mounting Type: Surface Mount
  • Base Part Number: LTC2358
  • detail: 18 Bit Analog to Digital Converter 8 Input 1 SAR 48-LQFP (7x7)
