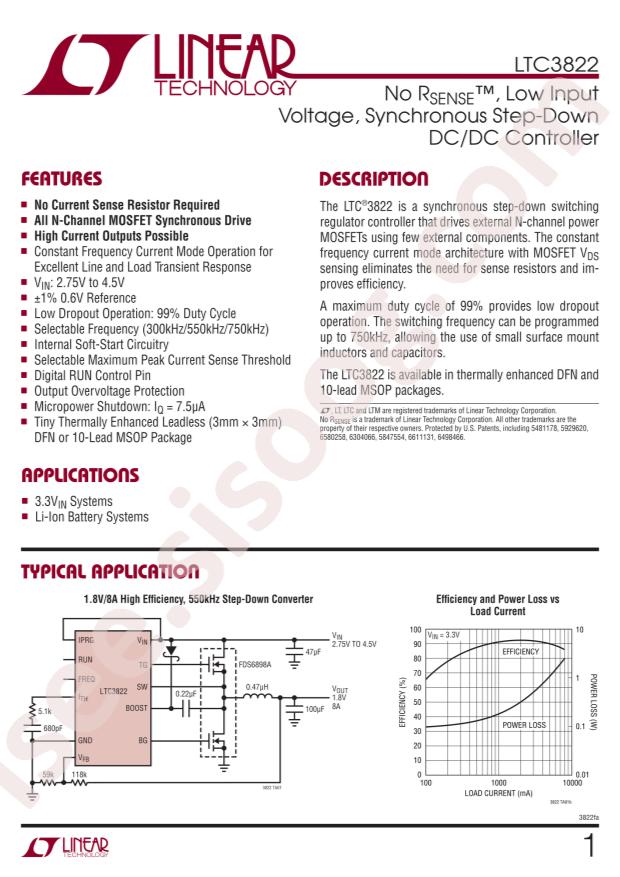

LTC3822EMSE#PBF دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LTC3822EMSE#PBF
|
|
حجم فایل
|
94.632
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
20
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Controllers
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:
Analog Devices LTC3822EMSE#PBF
-
Input Voltage:
2.75V~4.5V
-
Duty Cycle (Max):
99%
-
Number of Outputs:
1
-
Switching Frequency:
300kHz;550kHz;750kHz
-
Operating Temperature:
-40°C~+85°C@(TA)
-
Synchronous Rectification:
Yes
-
Package:
MSOP-10-EP
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Output Type:
Transistor Driver
-
Output Configuration:
Positive
-
Output Phases:
1
-
Voltage - Supply (Vcc/Vdd):
2.75V ~ 4.5V
-
Frequency - Switching:
300kHz, 550kHz, 750kHz
-
Synchronous Rectifier:
Yes
-
Clock Sync:
No
-
Serial Interfaces:
-
-
Control Features:
Enable, Frequency Control
-
Mounting Type:
Surface Mount
-
Package / Case:
10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
-
Supplier Device Package:
10-MSOP-EP
-
Base Part Number:
LTC3822
-
detail:
Buck Regulator Positive Output Step-Down DC-DC Controller IC 10-MSOP-EP
