دیتاشیت LT3022IMSE-1.8#PBF

LT3022 Datasheet

مشخصات دیتاشیت

نام دیتاشیت LT3022 Datasheet
حجم فایل 581.347 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

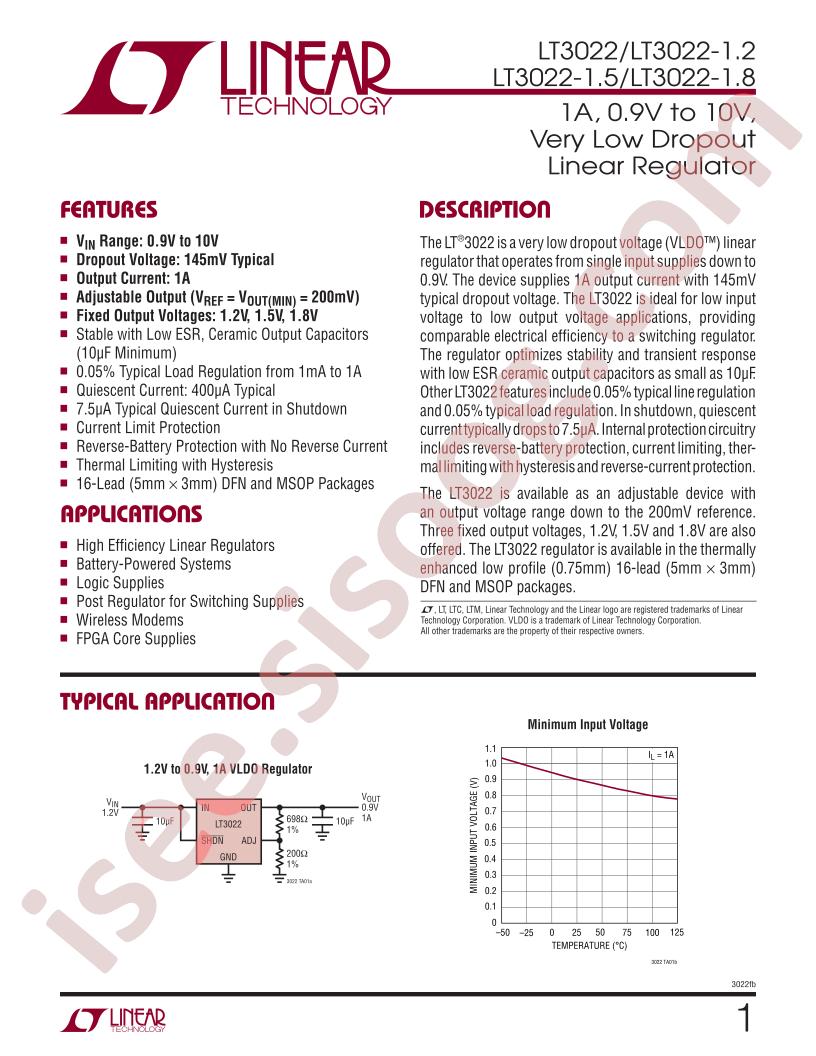

دانلود دیتاشیت LT3022 Datasheet

LT3022 Datasheet Datasheet

مشخصات

  • Manufacturer: Linear Technology/Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Output Configuration: Positive
  • Output Type: Fixed
  • Number of Regulators: 1
  • Voltage - Input (Max): 10V
  • Voltage - Output (Min/Fixed): 1.8V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.285V @ 1A
  • Current - Output: 1A
  • Current - Quiescent (Iq): 3.5mA
  • Current - Supply (Max): 36mA
  • PSRR: 66dB (120Hz)
  • Control Features: Enable
  • Protection Features: Over Current, Over Temperature, Reverse Polarity
  • Operating Temperature: -40°C ~ 125°C
  • Mounting Type: Surface Mount
  • Package / Case: 16-TFSOP (0.118", 3.00mm Width) Exposed Pad
  • Supplier Device Package: 16-MSOP-EP
  • Base Part Number: LT3022
  • detail: Linear Voltage Regulator IC 1 Output 1A 16-MSOP-EP
