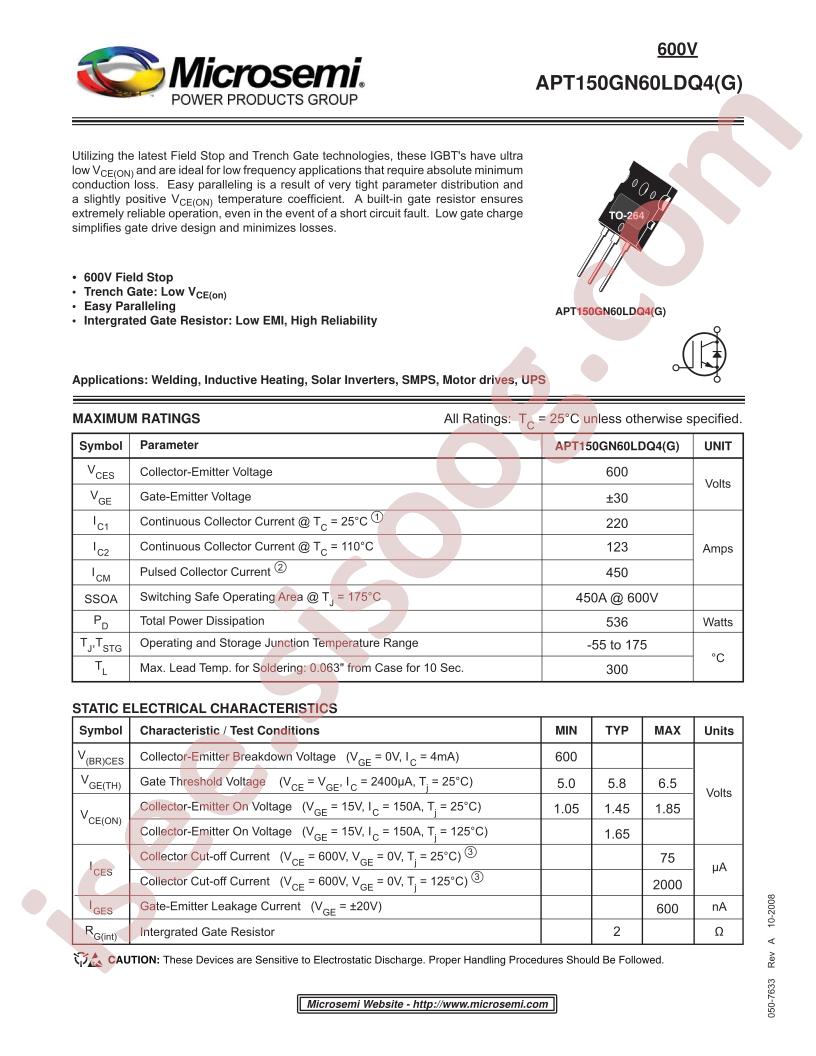

APT150GN60LDQ4G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
APT150GN60LDQ4G
|
|
حجم فایل
|
227.415
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
9
|
مشخصات فنی
-
Manufacturer:
Microchip Technology
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
IGBT Type:
Trench Field Stop
-
Voltage - Collector Emitter Breakdown (Max):
600V
-
Current - Collector (Ic) (Max):
220A
-
Current - Collector Pulsed (Icm):
450A
-
Vce(on) (Max) @ Vge, Ic:
1.85V @ 15V, 150A
-
Power - Max:
536W
-
Switching Energy:
8.81mJ (on), 4.295mJ (off)
-
Input Type:
Standard
-
Gate Charge:
970nC
-
Td (on/off) @ 25°C:
44ns/430ns
-
Test Condition:
400V, 150A, 1Ohm, 15V
-
Operating Temperature:
-55°C ~ 175°C (TJ)
-
Mounting Type:
Through Hole
-
Package / Case:
TO-264-3, TO-264AA
-
Supplier Device Package:
TO-264 [L]
-
detail:
IGBT Trench Field Stop 600V 220A 536W Through Hole TO-264 [L]
