LTC3772ETS8#TRMPBF دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت LTC3772ETS8#TRMPBF	دانلود دیتاشیت

LTC3772 20 pages

RoHS: true
Category: Power Supply Chip/DC-DC Controllers
Function: Step-down type
Topology: Step-down

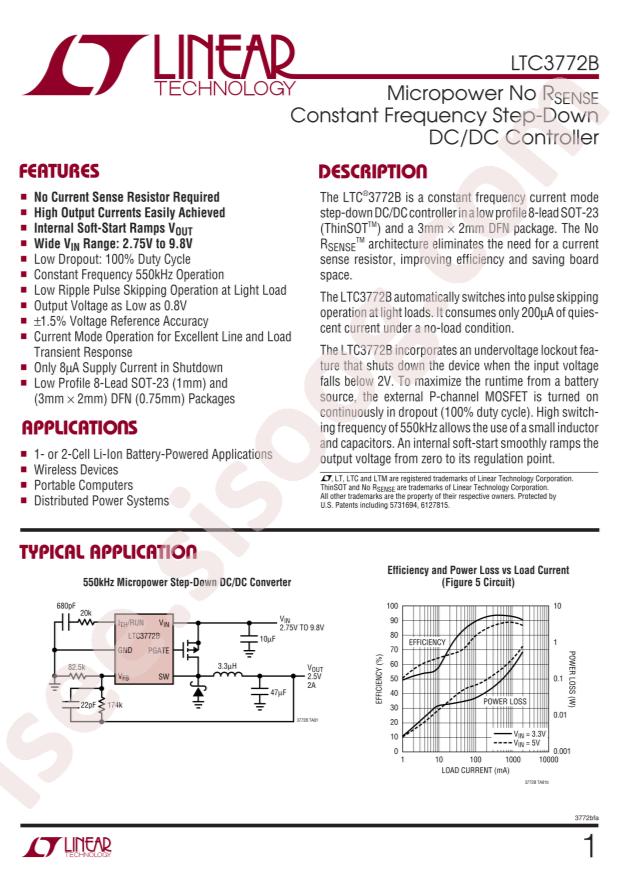

Datasheet: Analog Devices LTC3772ETS8#TRMPBF
Input Voltage: 2.75V~9.8V
Duty Cycle (Max): 100%
Number of Outputs: 1
Switching Frequency: 550kHz
Operating Temperature: -40°C~+85°C@(TA)
Synchronous Rectification: NO
Package: TSOT-23-8
Manufacturer: Analog Devices
Series: -
Packaging: Cut Tape (CT)
Part Status: Discontinued at Digi-Key
Output Type: Transistor Driver
Output Configuration: Positive
Output Phases: 1
Voltage - Supply (Vcc/Vdd): 2.75V ~ 9.8V
Frequency - Switching: 550kHz
Synchronous Rectifier: No
Clock Sync: No
Serial Interfaces: -
Control Features: Current Limit, Enable
Mounting Type: Surface Mount
Package / Case: SOT-23-8 Thin, TSOT-23-8
Supplier Device Package: TSOT-23-8
Base Part Number: LTC3772
detail: Buck Regulator Positive Output Step-Down DC-DC Controller IC TSOT-23-8
