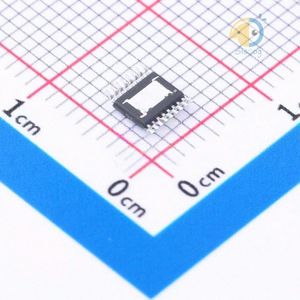

دیتاشیت LT3509IMSE#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت | LT3509 Datasheet |
|---|---|
| حجم فایل | 328.032 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 24 |
دانلود دیتاشیت LT3509 Datasheet |

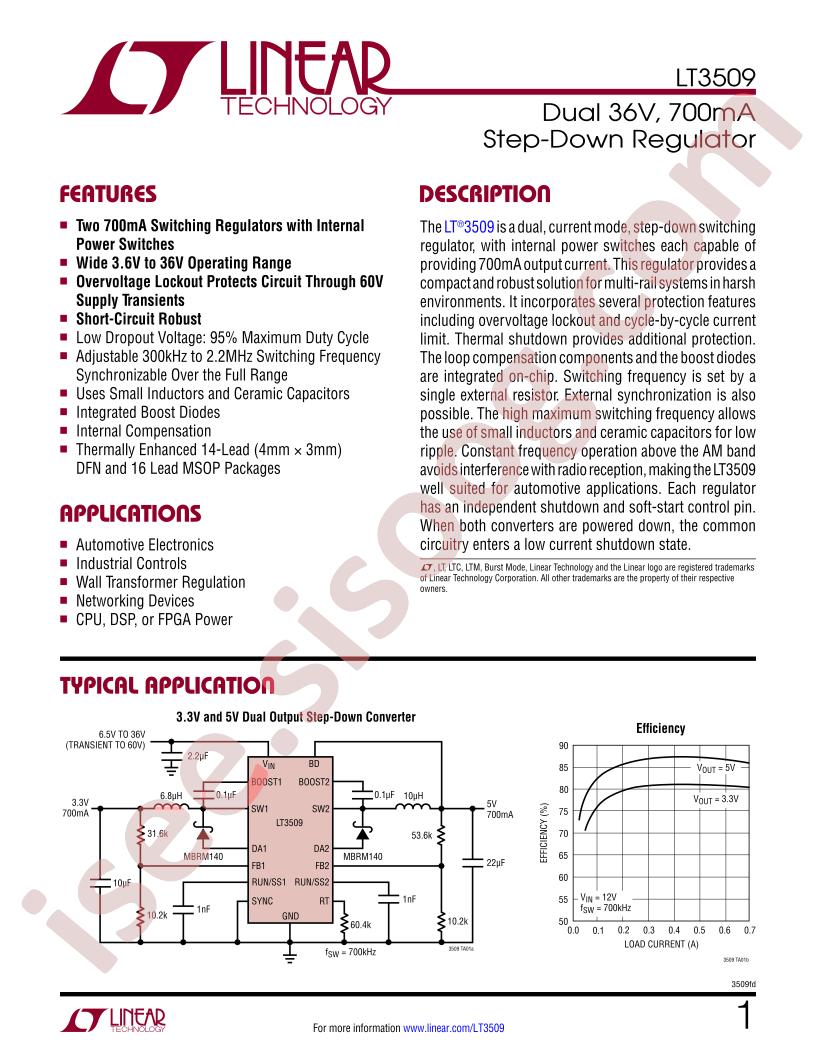

LT3509 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: Analog Devices LT3509IMSE#TRPBF
- Output Type: Adjustable
- Input Voltage: 3.6V~36V
- Output Voltage: 0.8V~34.2V
- Number of Outputs: 2
- Switching Frequency: 2.15MHz
- Output Current (Max): 700mA
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Package: MSOP-16-EP
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Output Configuration: Positive
- Voltage - Input (Min): 3.6V
- Voltage - Input (Max): 36V
- Voltage - Output (Min/Fixed): 0.8V
- Voltage - Output (Max): 34.2V
- Current - Output: 700mA
- Frequency - Switching: 260kHz ~ 2.15MHz
- Synchronous Rectifier: No
- Mounting Type: Surface Mount
- Package / Case: 16-TFSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package: 16-MSOP-EP
- Base Part Number: LT3509
- detail: Buck Switching Regulator IC Positive Adjustable 0.8V 2 Output 700mA 16-TFSOP (0.118", 3.00mm Width) Exposed Pad
