LTC3310SIV#TRMPBF دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت LTC3310SIV#TRMPBF	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down

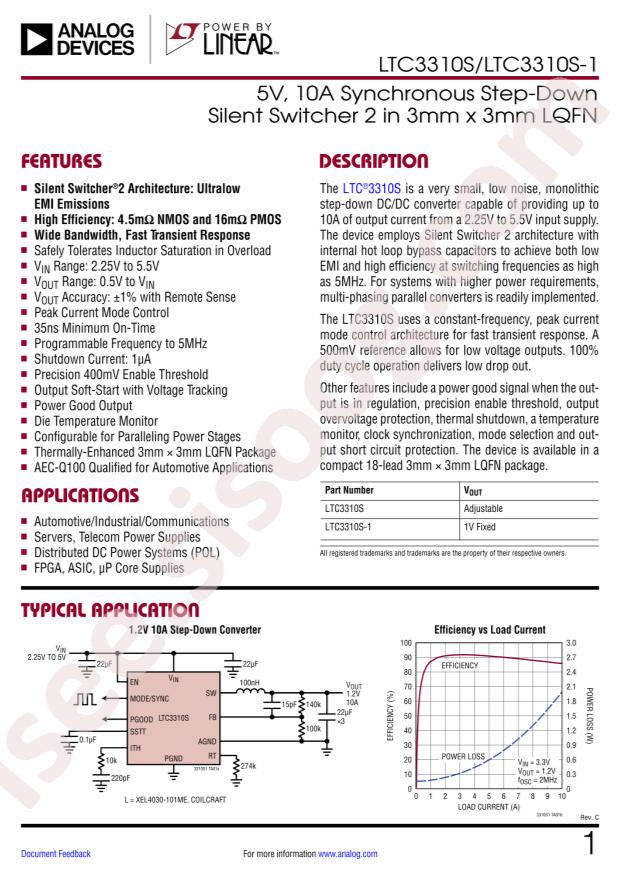

Datasheet: Analog Devices LTC3310SIV#TRMPBF
Output Type: Adjustable
Input Voltage: 2.25V~5.5V
Output Voltage: 0.5V~5.5V
Number of Outputs: 1
Switching Frequency: 2MHz
Output Current (Max): 10A
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: Yes
Package: LQFN-18-EP(3x3)
Manufacturer: Analog Devices
Series: Automotive, AEC-Q100
Packaging: Cut Tape (CT)
Part Status: Active
Output Configuration: Positive
Voltage - Input (Min): 2.25V
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 0.5V
Voltage - Output (Max): 5.5V
Current - Output: 10A
Frequency - Switching: 2MHz
Synchronous Rectifier: Yes
Mounting Type: Surface Mount
Package / Case: 18-TFLGA Exposed Pad
Supplier Device Package: 18-LGA (3x3)
detail: Buck Switching Regulator IC Positive Adjustable 0.5V 1 Output 10A 18-TFLGA Exposed Pad
