LT3472EDD#TRPBF دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت LT3472EDD#TRPBF	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: boost converterType;Buck-boost type
Topology: Boost;Cuk
Datasheet: Analog Devices LT3472EDD#TRPBF
Output Type: Adjustable
Input Voltage: 2.2V~16V
Output Voltage: 2.2V~34V;-34V~-2.2V
Number of Outputs: 2
Switching Frequency: 1.1MHz
Output Current (Max): 50mA
Operating Temperature: 0°C~+70°C@(TA)
Synchronous Rectification: NO

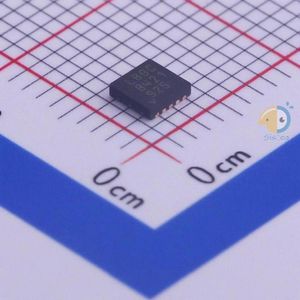

Package: DFN-10(3x3)
Manufacturer: Analog Devices
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Output Configuration: Positive and Negative (Dual Rail)
Voltage - Input (Min): 2.2V
Voltage - Input (Max): 16V
Voltage - Output (Min/Fixed): ±2.2V
Voltage - Output (Max): ±34V
Current - Output: 50mA
Frequency - Switching: 1.1MHz
Synchronous Rectifier: No
Mounting Type: Surface Mount
Package / Case: 10-WFDFN Exposed Pad
Supplier Device Package: 10-DFN (3x3)
Base Part Number: LT3472
detail: Boost, Cuk Switching Regulator IC Positive and Negative (Dual Rail) Adjustable ±2.2V 2 Output 50mA 10-WFDFN Exposed Pad
