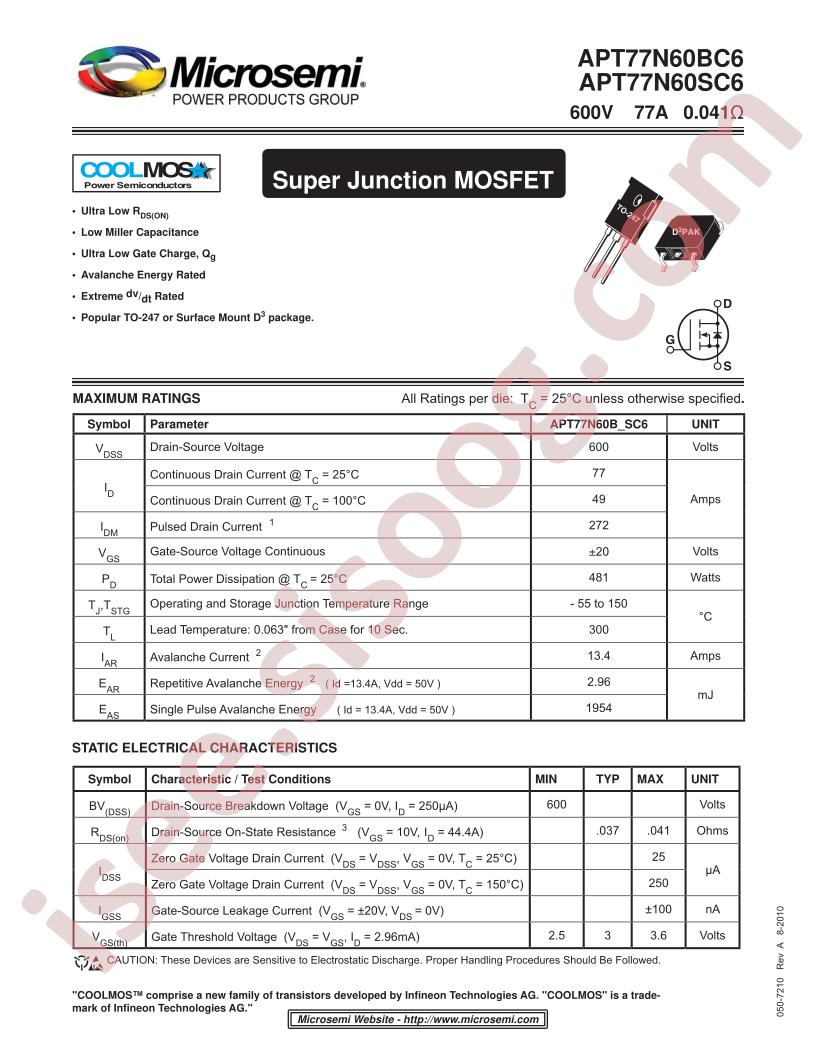

APT77N60xC6 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
APT77N60xC6
|
|
حجم فایل
|
199.218
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
Manufacturer:
Microchip Technology
-
Series:
CoolMOS™
-
Packaging:
Bulk
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
600V
-
Current - Continuous Drain (Id) @ 25°C:
77A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
41mOhm @ 44.4A, 10V
-
Vgs(th) (Max) @ Id:
3.6V @ 2.96mA
-
Gate Charge (Qg) (Max) @ Vgs:
260nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
13600pF @ 25V
-
FET Feature:
Super Junction
-
Power Dissipation (Max):
481W (Tc)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
D3Pak
-
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
-
detail:
N-Channel 600V 77A (Tc) 481W (Tc) Surface Mount D3Pak
