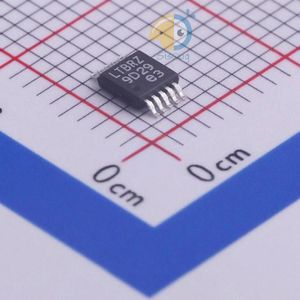

دیتاشیت LTC3824IMSE#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC3824 |
|---|---|
| حجم فایل | 385.081 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 16 |
دانلود دیتاشیت LTC3824 |
LTC3824 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Function: Step-down type
- Topology: Step-down
- Datasheet: Analog Devices LTC3824IMSE#TRPBF
- Input Voltage: 4V~60V
- Duty Cycle (Max): 100%
- Number of Outputs: 1
- Switching Frequency: 600kHz
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Package: MSOP-10-EP
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Type: Transistor Driver
- Output Configuration: Positive
- Output Phases: 1
- Voltage - Supply (Vcc/Vdd): 4V ~ 60V
- Frequency - Switching: 200kHz ~ 600kHz
- Synchronous Rectifier: No
- Clock Sync: Yes
- Serial Interfaces: -
- Control Features: Frequency Control, Soft Start
- Mounting Type: Surface Mount
- Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package: 10-MSOP-EP
- Base Part Number: LTC3824
- detail: Buck Regulator Positive Output Step-Down DC-DC Controller IC 10-MSOP-EP
