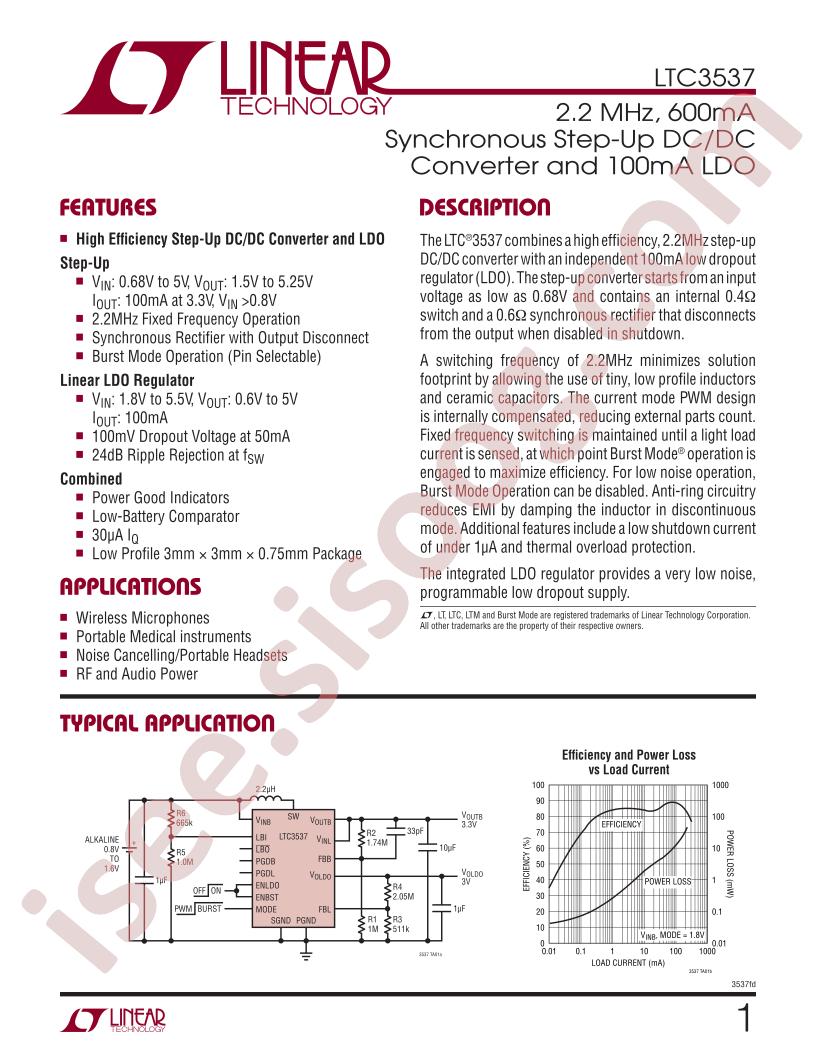

دیتاشیت LTC3537EUD#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت |
LTC3537
|
| حجم فایل |
321.751
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
22
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Topology:
Boost
-
Datasheet:
Analog Devices LTC3537EUD#TRPBF
-
Input Voltage:
0.68V~5.5V
-
Number of Outputs:
2
-
Switching Frequency:
2.2MHz
-
Operating Temperature:
-40°C~+85°C
-
Package:
QFN-16-EP(3x3)
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Frequency - Switching:
2.2MHz
-
Voltage/Current - Output 1:
1.5V ~ 5.25V, 100mA
-
Voltage/Current - Output 2:
0.6V ~ 5V, 100mA
-
Voltage/Current - Output 3:
-
-
w/LED Driver:
No
-
w/Supervisor:
No
-
w/Sequencer:
Yes
-
Voltage - Supply:
0.68V ~ 5.5V
-
Mounting Type:
Surface Mount
-
Package / Case:
16-WFQFN Exposed Pad
-
Supplier Device Package:
16-QFN-EP (3x3)
-
Base Part Number:
LTC3537
-
detail:
PMIC - Voltage Regulators - Linear + Switching 2 Output Step-Up (Boost) Synchronous (1), Linear (LDO) (1) 2.2MHz 16-QFN-EP (3x3)
