LT1711,LT1712 Datasheet دیتاشیت

LT1711,LT1712 Datasheet

مشخصات دیتاشیت

نام دیتاشیت LT1711,LT1712 Datasheet
حجم فایل 225.893 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

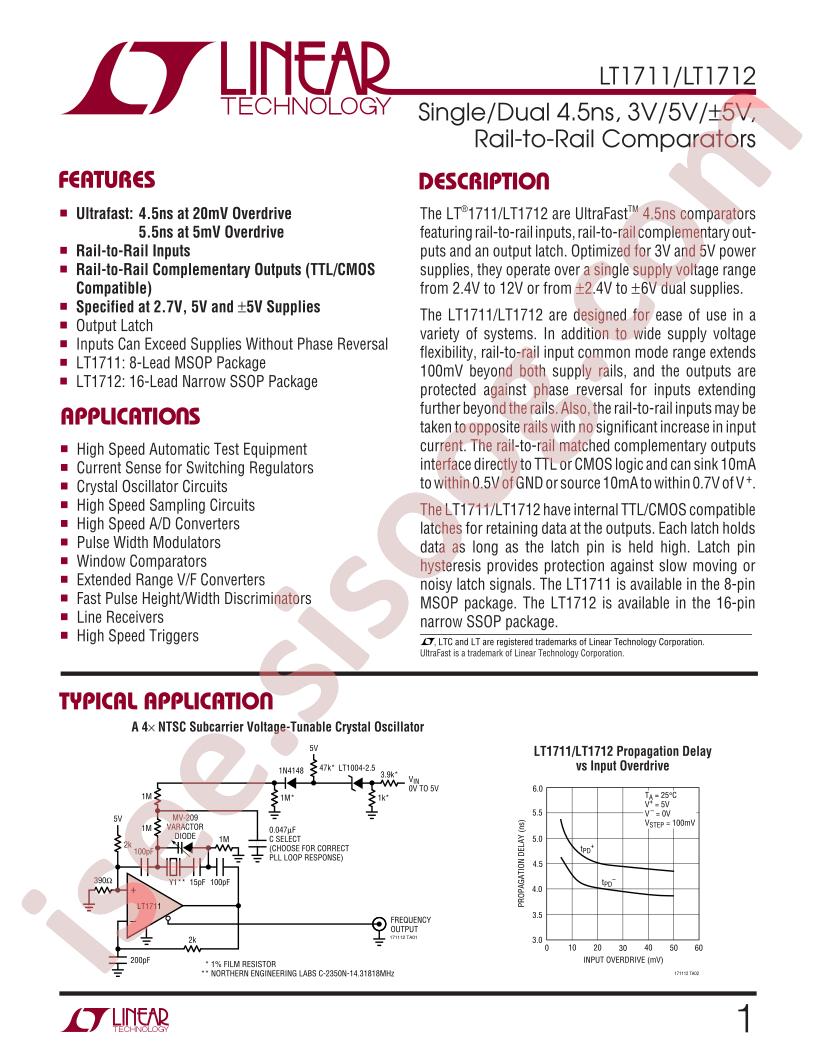

دانلود دیتاشیت LT1711,LT1712 Datasheet

دانلود دیتاشیت

سایر مستندات

LT1712CGN#PBF 12 pages

مشخصات فنی

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Comparators
  • Datasheet: Analog Devices LT1711IMS8#TRPBF
  • Output Type: CMOS;互补;轨到轨;TTL
  • Supply Voltage: 2.4V~12V;2.4V~6V
  • Number of Elements: -
  • Operating Temperature: -40°C~+85°C
  • Input Bias Current (Ib): 5uA
  • Input Offset Voltage (Vos): 5mV
  • Input Hysteresis Voltage (Vhys): -
  • Common Mode Rejection Ratio (CMRR): 75dB
  • Package: MSOP-8
  • Manufacturer: Analog Devices
  • Series: UltraFast™
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Type: with Latch
  • Voltage - Supply, Single/Dual (±): 2.4V ~ 12V, ±2.4V ~ 6V
  • Voltage - Input Offset (Max): 5mV @ 5V
  • Current - Input Bias (Max): 5µA @ 5V
  • Current - Output (Typ): 20mA
  • Current - Quiescent (Max): 22mA
  • CMRR, PSRR (Typ): 75dB CMRR, 85dB PSRR
  • Propagation Delay (Max): 6ns
  • Hysteresis: 100mV
  • Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 8-MSOP
  • Base Part Number: LT1711
  • detail: Comparator with Latch CMOS, Complementary, Rail-to-Rail, TTL 8-MSOP
