دیتاشیت DSPIC30F6010-20I/PF
مشخصات دیتاشیت
| نام دیتاشیت | DSPIC30F6010 Data Sheet |
|---|---|
| حجم فایل | 3497.215 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 222 |

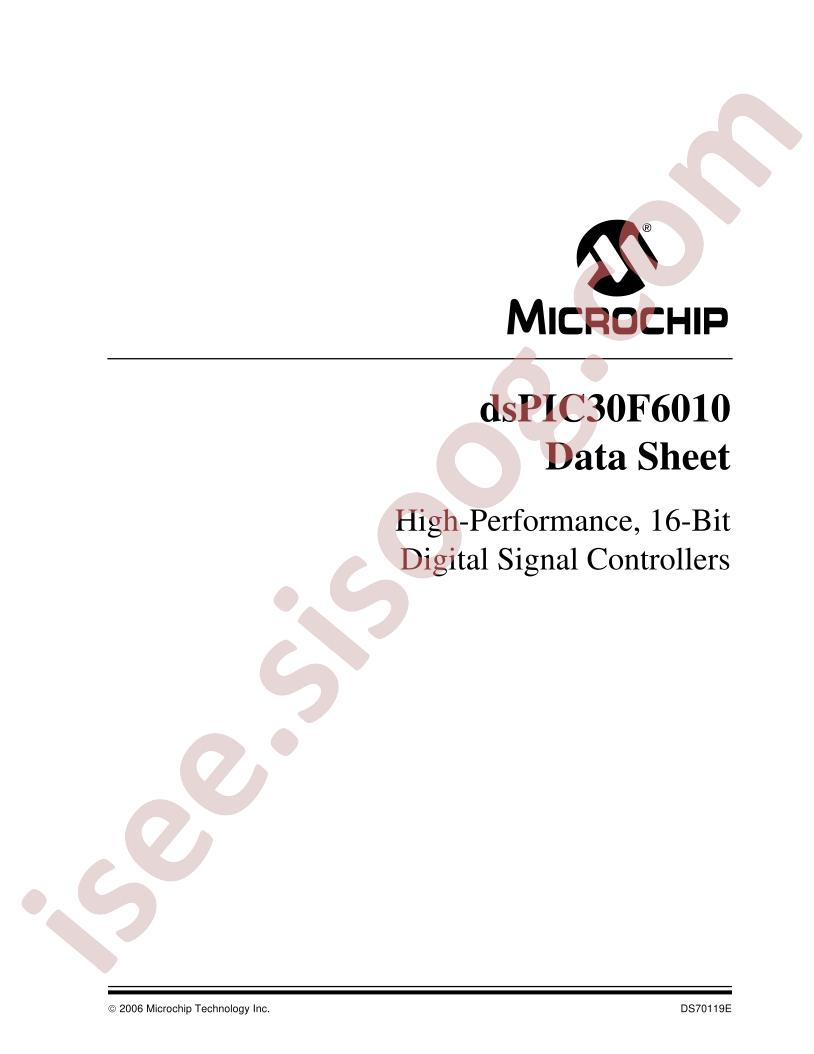

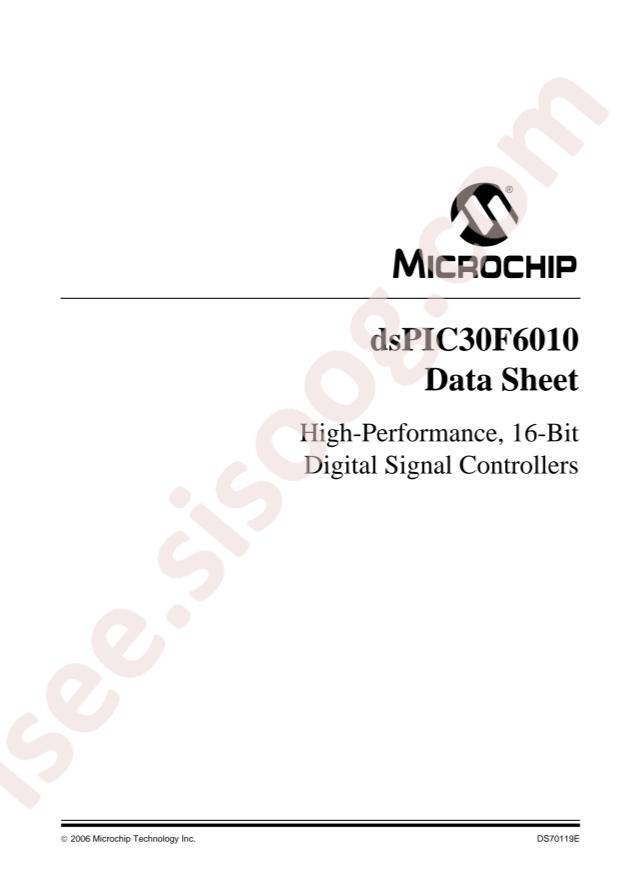

دانلود دیتاشیت DSPIC30F6010 Data Sheet |
DSPIC30F6010 Data Sheet Datasheet |
|---|
مشخصات
- CAN: -
- I2C: -
- I2S: -
- SPI: -
- RoHS: true
- EEPROM: -
- CPU Core: PIC
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 8KB
- Watchdog: Yes
- ADC (Bit): 10bit
- DAC (Bit): -
- Datasheet: Microchip Tech DSPIC30F6010-20I/PF
- PWM (Bit): -
- 8Bit Timer: -
- UART/USART: -
- 16Bit Timer: -
- 32Bit Timer: -
- Real-Time Clock: -
- CPU Maximum Speed: -
- GPIO Ports Number: 68
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: WDT;Low-VoltageDetect;PWM
- Program Memory Type: FLASH
- Direct Memory Access: -
- Program Storage Size: 48KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 2.5V~5.5V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: TQFP-80(12x12)
- Manufacturer: Microchip Tech
- Series: dsPIC™ 30F
- Packaging: Tray
- Part Status: Active
- Core Processor: dsPIC
- Core Size: 16-Bit
- Speed: 20 MIPS
- Connectivity: CANbus, I²C, SPI, UART/USART
- Peripherals: Brown-out Detect/Reset, LVD, Motor Control PWM, QEI, POR, PWM, WDT
- Number of I/O: 68
- Program Memory Size: 144KB (48K x 24)
- EEPROM Size: 4K x 8
- Voltage - Supply (Vcc/Vdd): 2.5V ~ 5.5V
- Data Converters: A/D 16x10b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 80-TQFP
- Supplier Device Package: 80-TQFP (14x14)
- Base Part Number: DSPIC30F6010
- detail: dsPIC dsPIC™ 30F Microcontroller IC 16-Bit 20 MIPS 144KB (48K x 24) FLASH 80-TQFP (14x14)
