دیتاشیت LT3012BEFE#TRPBF

LT3012B Datasheet

مشخصات دیتاشیت

نام دیتاشیت LT3012B Datasheet
حجم فایل 220.144 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

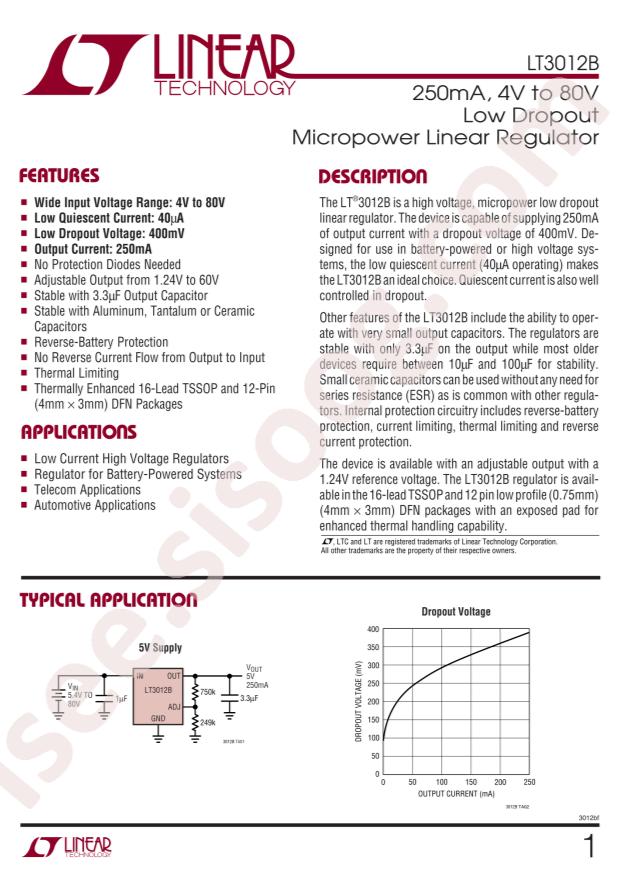

دانلود دیتاشیت LT3012B Datasheet

LT3012B Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Analog Devices LT3012BEFE#TRPBF
  • Output Type: Adjustable
  • Output Current: 250mA
  • Output Voltage: 1.24V~60V
  • Dropout Voltage: 0.62V@(250mA)
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 80V
  • Operating Temperature: -40°C~+125°C
  • Quiescent Current (Ground Current): 100uA
  • Power Supply Rejection Ratio (PSRR): 75dB@(120Hz)
  • Package: TSSOP-16-EP
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Configuration: Positive
  • Number of Regulators: 1
  • Voltage - Input (Max): 80V
  • Voltage - Output (Min/Fixed): 1.24V
  • Voltage - Output (Max): 60V
  • Voltage Dropout (Max): 0.62V @ 250mA
  • Current - Output: 250mA
  • Current - Quiescent (Iq): 100µA
  • Current - Supply (Max): 18mA
  • PSRR: 75dB (120Hz)
  • Control Features: -
  • Protection Features: Over Current, Over Temperature, Reverse Polarity
  • Mounting Type: Surface Mount
  • Package / Case: 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
  • Supplier Device Package: 16-TSSOP-EP
  • Base Part Number: LT3012
  • detail: Linear Voltage Regulator IC 1 Output 250mA 16-TSSOP-EP
