دیتاشیت LT1764EQ-2.5#TRPBF

LT1764 Series

مشخصات دیتاشیت

نام دیتاشیت LT1764 Series
حجم فایل 293.69 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

دانلود دیتاشیت LT1764 Series

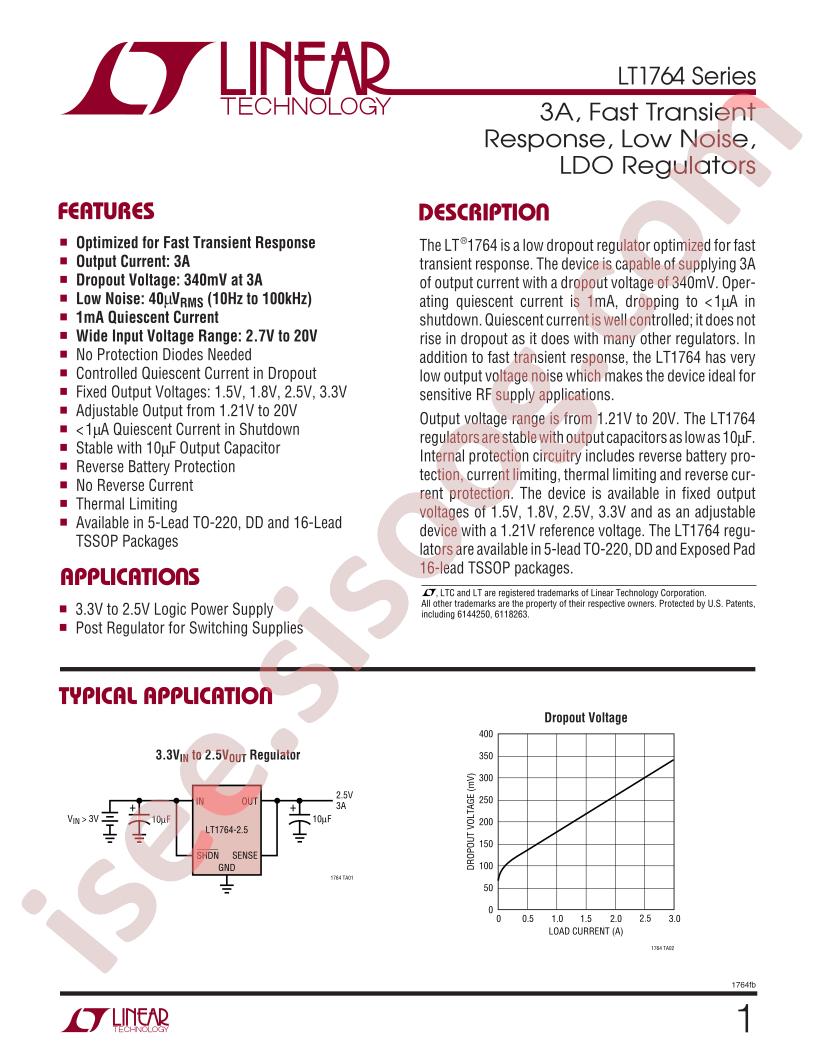

LT1764 Series Datasheet

مشخصات

  • Manufacturer: Linear Technology/Analog Devices
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Configuration: Positive
  • Output Type: Fixed
  • Number of Regulators: 1
  • Voltage - Input (Max): 20V
  • Voltage - Output (Min/Fixed): 2.5V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.66V @ 3A
  • Current - Output: 3A
  • Current - Quiescent (Iq): 1.5mA
  • Current - Supply (Max): 200mA
  • PSRR: 63dB (120Hz)
  • Control Features: Enable
  • Protection Features: Over Current, Over Temperature, Reverse Polarity
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
  • Supplier Device Package: 5-DDPAK
  • Base Part Number: LT1764
  • detail: Linear Voltage Regulator IC 1 Output 3A 5-DDPAK
