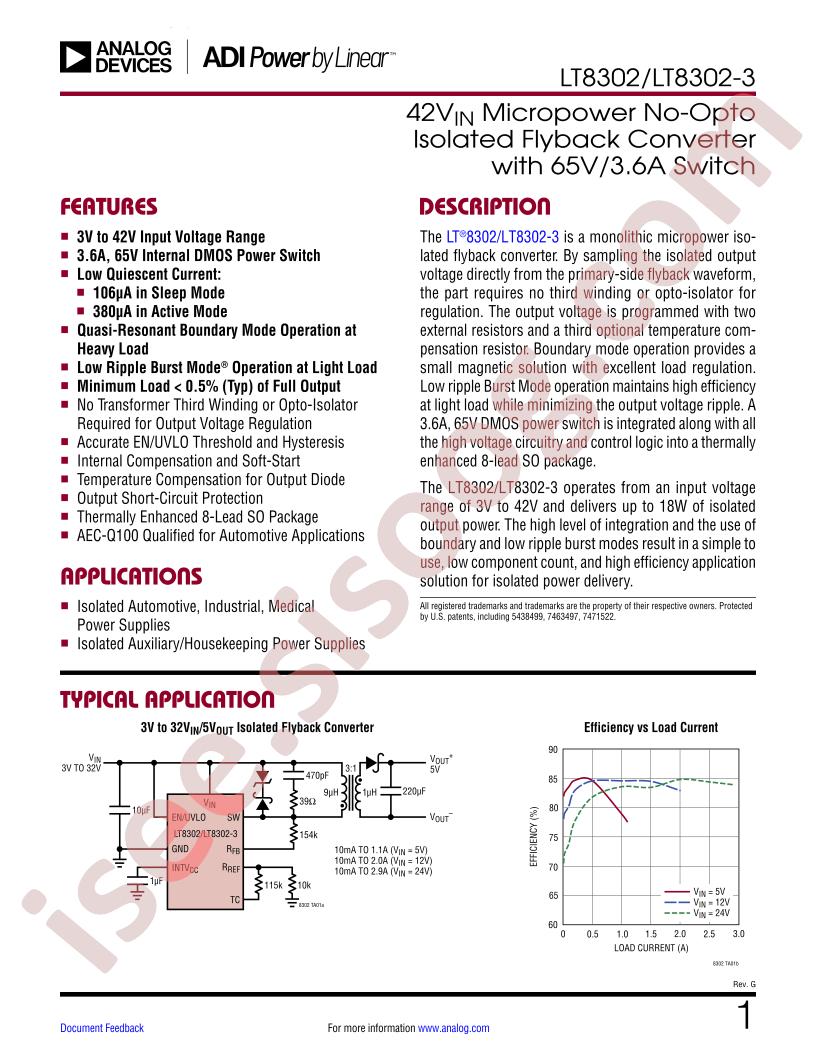

- LT8302 Datasheet
LT8302 Datasheet Datasheet
Datasheet specifications
| Datasheet's name | LT8302 Datasheet |
|---|---|
| File size | 1576.168 KB |
| File type | |
| Number of pages | 26 |
Download Datasheet LT8302 Datasheet |
Download Datasheet |
|---|
Other documentations
LT8302HS8E#PBF 26 pages
Technical specifications
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Buck-boost type
- Topology: Flyback
- Datasheet: Analog Devices LT8302ES8E#TRPBF
- Output Type: -
- Input Voltage: 2.8V~42V
- Number of Outputs: 1
- Switching Frequency: 12kHz
- Output Current (Max): 3.6A
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Package: SOP-8
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive or Negative, Isolation Capable
- Voltage - Input (Min): 2.8V
- Voltage - Input (Max): 42V
- Voltage - Output (Min/Fixed): -
- Voltage - Output (Max): -
- Current - Output: 3.6A
- Frequency - Switching: Down to 12kHz
- Synchronous Rectifier: No
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package: 8-SOIC-EP
- Base Part Number: LT8302
- detail: Flyback Switching Regulator IC Positive or Negative, Isolation Capable 1 Output 3.6A 8-SOIC (0.154", 3.90mm Width) Exposed Pad
