APTGLQ100A120T3AG دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت APTGLQ100A120T3AG	دانلود دیتاشیت

Manufacturer: Microchip Technology
Series: -
Packaging: Bulk
Part Status: Active
IGBT Type: Trench Field Stop
Configuration: Half Bridge
Voltage - Collector Emitter Breakdown (Max): 1200V
Current - Collector (Ic) (Max): 185A
Power - Max: 650W
Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 100A
Current - Collector Cutoff (Max): 50µA
Input Capacitance (Cies) @ Vce: 6.15nF @ 25V
Input: Standard
NTC Thermistor: Yes
Operating Temperature: -40°C ~ 175°C (TJ)
Mounting Type: Through Hole
Package / Case: SP3
Supplier Device Package: SP3

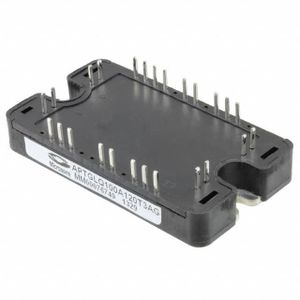

detail: IGBT Module Trench Field Stop Half Bridge 1200V 185A 650W Through Hole SP3
