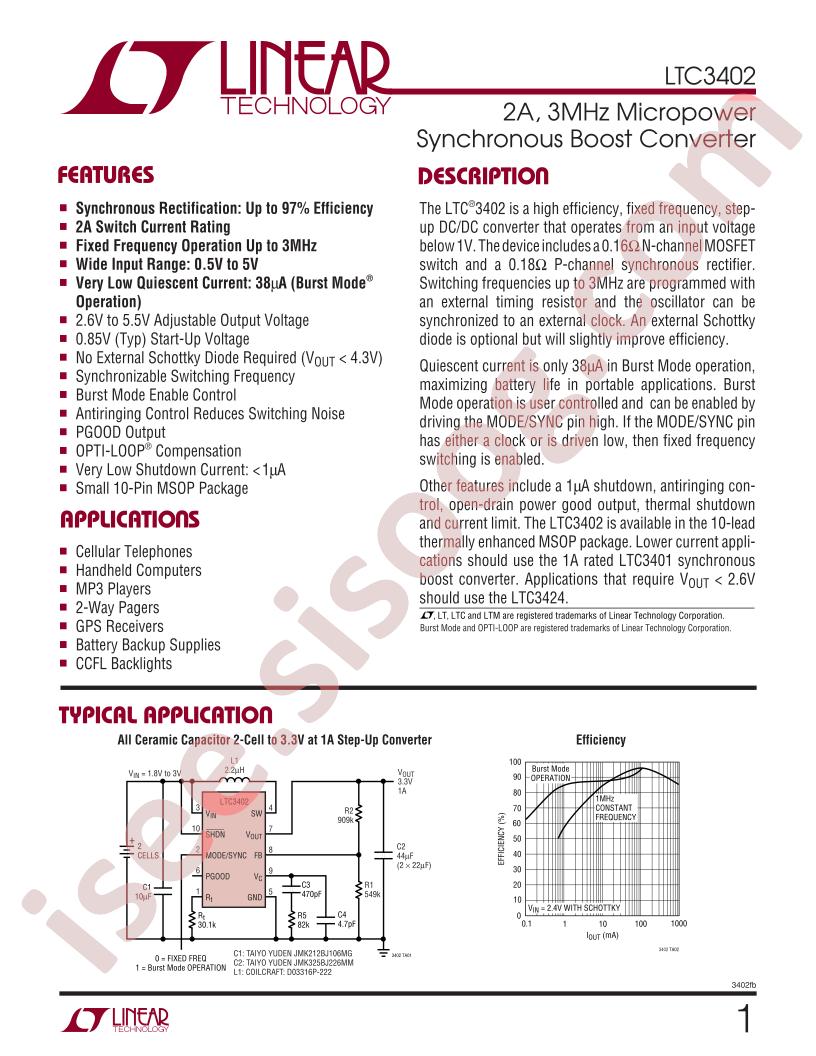

LTC3402 Datasheet دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت LTC3402 Datasheet	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: boost converterType
Topology: Boost
Datasheet: Analog Devices LTC3402EMS#TRPBF
Output Type: Adjustable
Input Voltage: 0.5V~5V
Output Voltage: 2.6V~5.5V
Number of Outputs: 1
Switching Frequency: 2MHz
Output Current (Max): 2A
Operating Temperature: -40°C~+85°C@(TA)
Synchronous Rectification: NO
Package: MSOP-10
Manufacturer: Analog Devices
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Output Configuration: Positive
Voltage - Input (Min): 0.5V
Voltage - Input (Max): 5V
Voltage - Output (Min/Fixed): 2.6V
Voltage - Output (Max): 5.5V
Current - Output: 2A (Switch)
Frequency - Switching: 2MHz
Synchronous Rectifier: No
Mounting Type: Surface Mount
Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package: 10-MSOP
Base Part Number: LTC3402
detail: Boost Switching Regulator IC Positive Adjustable 2.6V 1 Output 2A (Switch) 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
