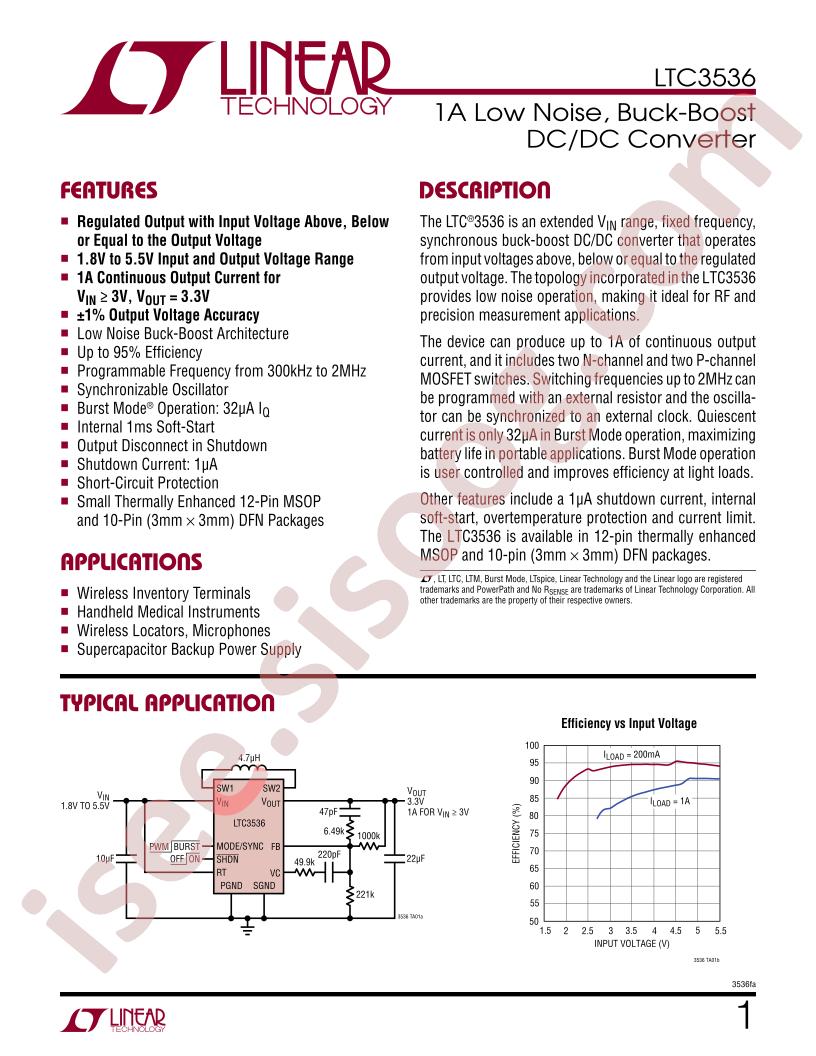

LTC3536 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LTC3536
|
|
حجم فایل
|
2401.232
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
28
|
مشخصات فنی
-
Manufacturer:
Linear Technology/Analog Devices
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Function:
Step-Up/Step-Down
-
Output Configuration:
Positive
-
Topology:
Buck-Boost
-
Output Type:
Adjustable
-
Number of Outputs:
1
-
Voltage - Input (Min):
1.8V
-
Voltage - Input (Max):
5.5V
-
Voltage - Output (Min/Fixed):
1.8V
-
Voltage - Output (Max):
5.5V
-
Current - Output:
1A
-
Frequency - Switching:
300kHz ~ 2MHz
-
Synchronous Rectifier:
Yes
-
Operating Temperature:
-40°C ~ 125°C (TJ)
-
Mounting Type:
Surface Mount
-

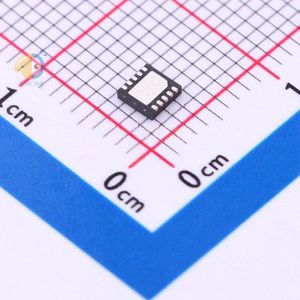

Package / Case:
12-TSSOP (0.118", 3.00mm Width) Exposed Pad
-
Supplier Device Package:
12-MSOP-EP
-
Base Part Number:
LTC3536
-
detail:
Buck-Boost Switching Regulator IC Positive Adjustable 1.8V 1 Output 1A 12-TSSOP (0.118", 3.00mm Width) Exposed Pad
