APTM100A18FTG دیتاشیت

مشخصات دیتاشیت

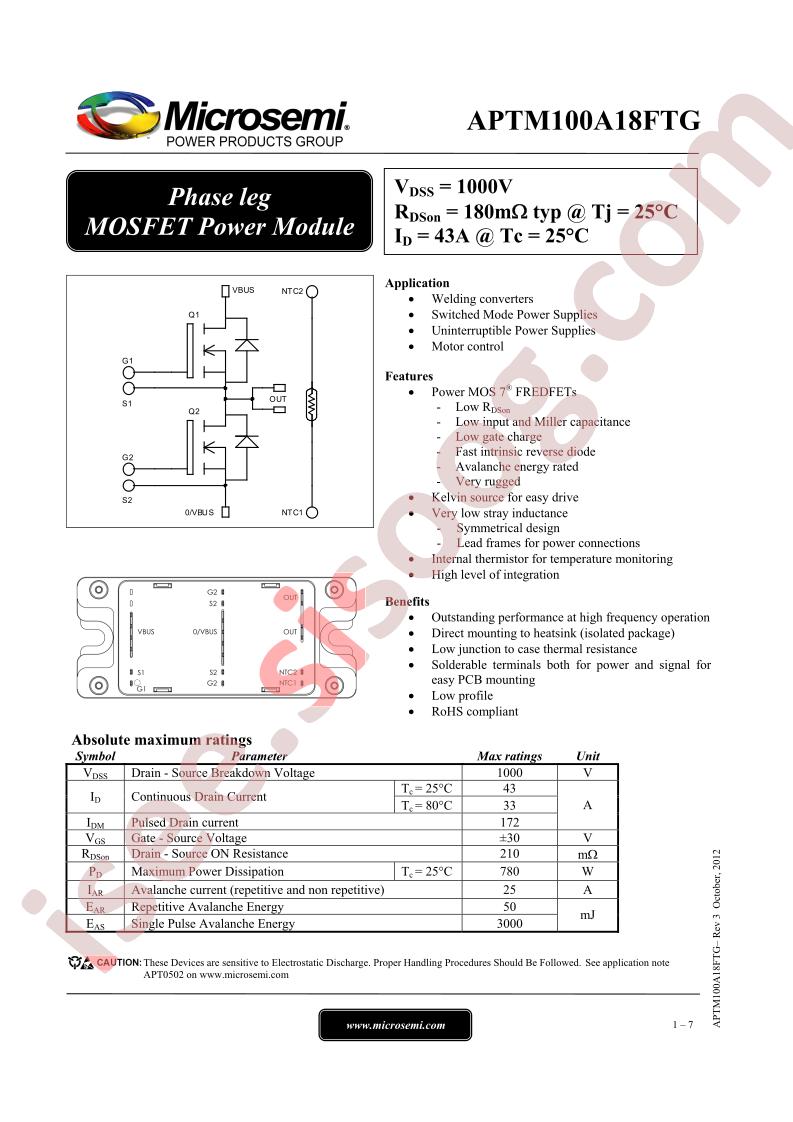

مشاهده دیتاشیت APTM100A18FTG	دانلود دیتاشیت

Manufacturer: Microchip Technology
Series: -
Packaging: Bulk
Part Status: Active
FET Type: 2 N-Channel (Half Bridge)
FET Feature: Standard
Drain to Source Voltage (Vdss): 1000V (1kV)
Current - Continuous Drain (Id) @ 25°C: 43A
Rds On (Max) @ Id, Vgs: 210mOhm @ 21.5A, 10V
Vgs(th) (Max) @ Id: 5V @ 5mA
Gate Charge (Qg) (Max) @ Vgs: 372nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds: 10400pF @ 25V
Power - Max: 780W
Operating Temperature: -40°C ~ 150°C (TJ)
Mounting Type: Chassis Mount

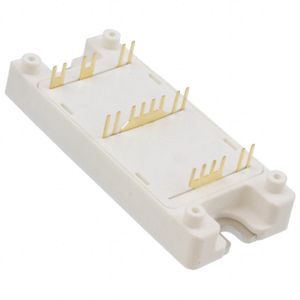

Package / Case: SP4
Supplier Device Package: SP4
detail: Mosfet Array 2 N-Channel (Half Bridge) 1000V (1kV) 43A 780W Chassis Mount SP4
