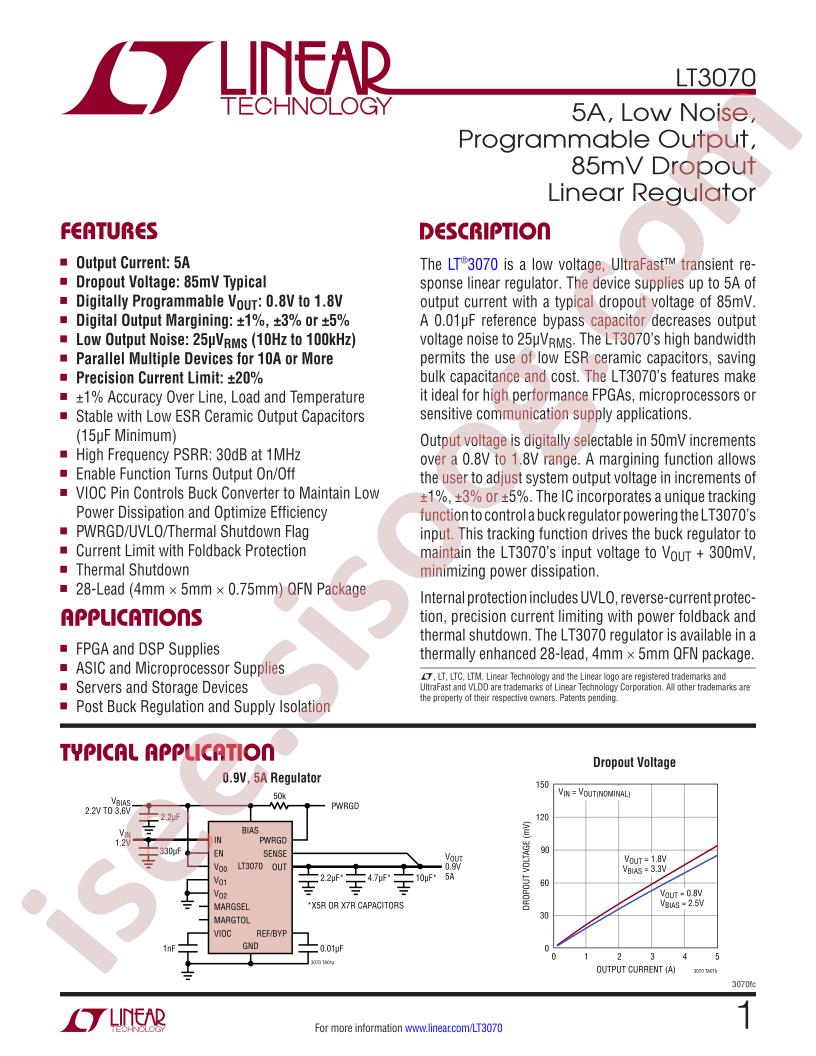

دیتاشیت LT3070IUFD#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت |
LT3070
|
| حجم فایل |
853.552
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
30
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Analog Devices LT3070IUFD#TRPBF
-
Output Current:
5A
-
Output Voltage:
800mV
-
Dropout Voltage:
0.15V@(5A)
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
3V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
1.5mA
-
Power Supply Rejection Ratio (PSRR):
66dB@(120Hz)
-
Package:
QFN-28-EP(4x5)
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Obsolete
-
Output Configuration:
Positive
-
Output Type:
Programmable
-
Number of Regulators:
1
-
Voltage - Input (Max):
3V
-
Voltage - Output (Min/Fixed):
0.8V
-
Voltage - Output (Max):
1.8V
-
Voltage Dropout (Max):
0.15V @ 5A
-
Current - Output:
5A
-
Current - Quiescent (Iq):
1.8mA
-
Current - Supply (Max):
2.3mA
-
PSRR:
66dB (120Hz)
-
Control Features:
Enable, Power Good, Soft Start
-
Protection Features:
Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
-
Mounting Type:
Surface Mount
-
Package / Case:
28-WFQFN Exposed Pad
-
Supplier Device Package:
28-QFN (4x5)
-
detail:
Linear Voltage Regulator IC 1 Output 5A 28-QFN (4x5)
