APTC80AM75SCG دیتاشیت

مشخصات دیتاشیت

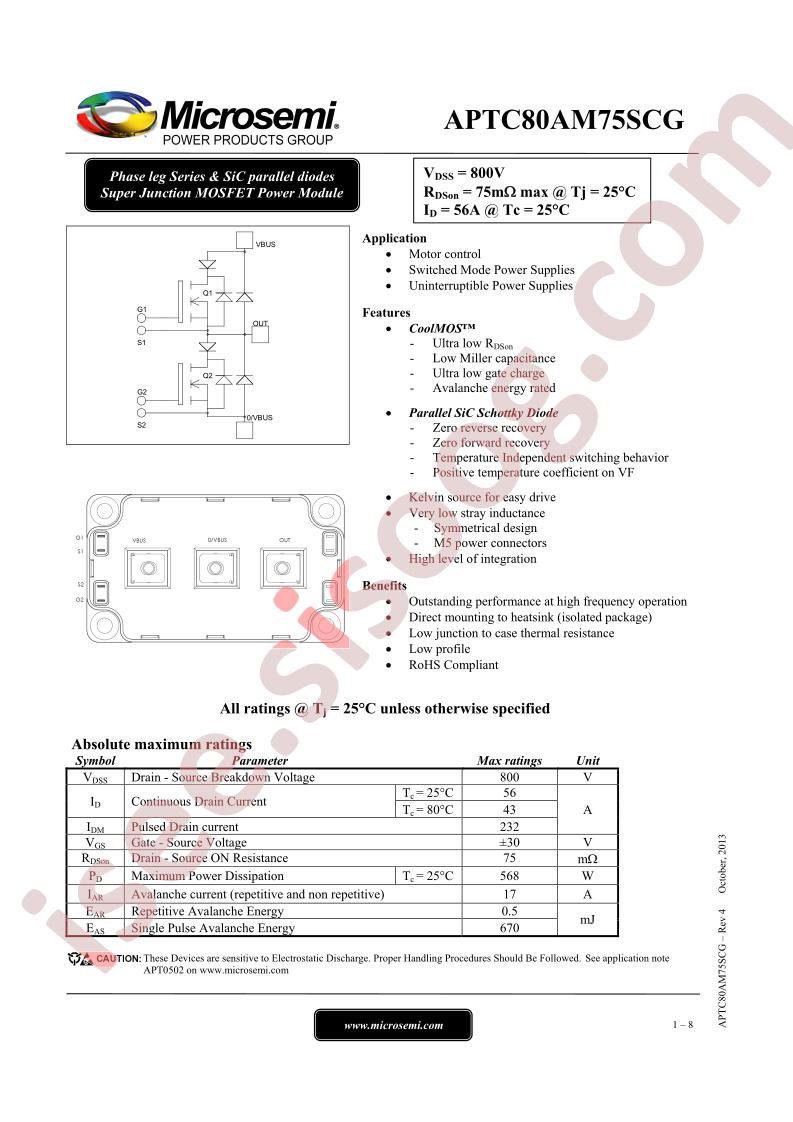

مشاهده دیتاشیت APTC80AM75SCG	دانلود دیتاشیت

Manufacturer: Microchip Technology
Series: -
Packaging: Bulk
Part Status: Active
FET Type: 2 N-Channel (Half Bridge)
FET Feature: Standard
Drain to Source Voltage (Vdss): 800V
Current - Continuous Drain (Id) @ 25°C: 56A
Rds On (Max) @ Id, Vgs: 75mOhm @ 28A, 10V
Vgs(th) (Max) @ Id: 3.9V @ 4mA
Gate Charge (Qg) (Max) @ Vgs: 364nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds: 9015pF @ 25V
Power - Max: 568W
Operating Temperature: -40°C ~ 150°C (TJ)
Mounting Type: Chassis Mount
Package / Case: SP6
Supplier Device Package: SP6
detail: Mosfet Array 2 N-Channel (Half Bridge) 800V 56A 568W Chassis Mount SP6
