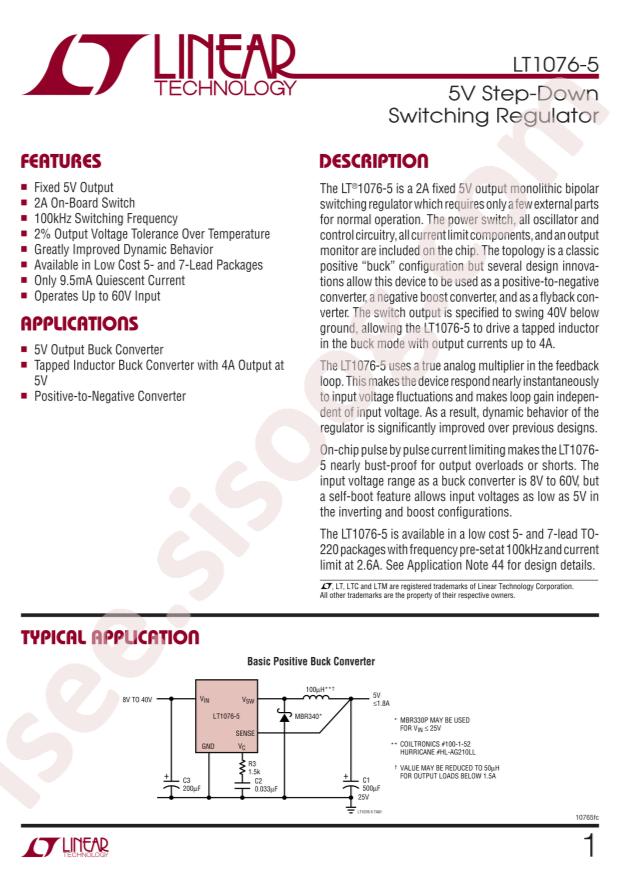

LT1076HVCT#PBF دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LT1076HVCT#PBF
|
|
حجم فایل
|
94.163
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
boost converterType;Step-down type;Buck-boost type
-
Topology:
Step-down;Boost;Flyback
-
Datasheet:
Analog Devices LT1076CR-5#TRPBF
-
Output Type:
Fixed
-
Input Voltage:
8V~45V
-
Output Voltage:
5V
-
Number of Outputs:
1
-
Switching Frequency:
100kHz
-
Output Current (Max):
2A
-
Operating Temperature:
0°C~+70°C@(TA)
-
Synchronous Rectification:
NO
-
Package:
TO-263-7
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive or Negative
-
Voltage - Input (Min):
8V
-
Voltage - Input (Max):
45V
-
Voltage - Output (Min/Fixed):
5V
-
Voltage - Output (Max):
-
-
Current - Output:
2A (Switch)
-
Frequency - Switching:
100kHz
-
Synchronous Rectifier:
No
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
-
Supplier Device Package:
D2PAK-7
-
Base Part Number:
LT1076
-
detail:
Buck, Boost, Flyback Switching Regulator IC Positive or Negative Fixed 5V 1 Output 2A (Switch) TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
