دیتاشیت LTC2333CLX-18#PBF

LTC2333-18

مشخصات دیتاشیت

نام دیتاشیت LTC2333-18
حجم فایل 2226.44 کیلوبایت
نوع فایل pdf
تعداد صفحات 40

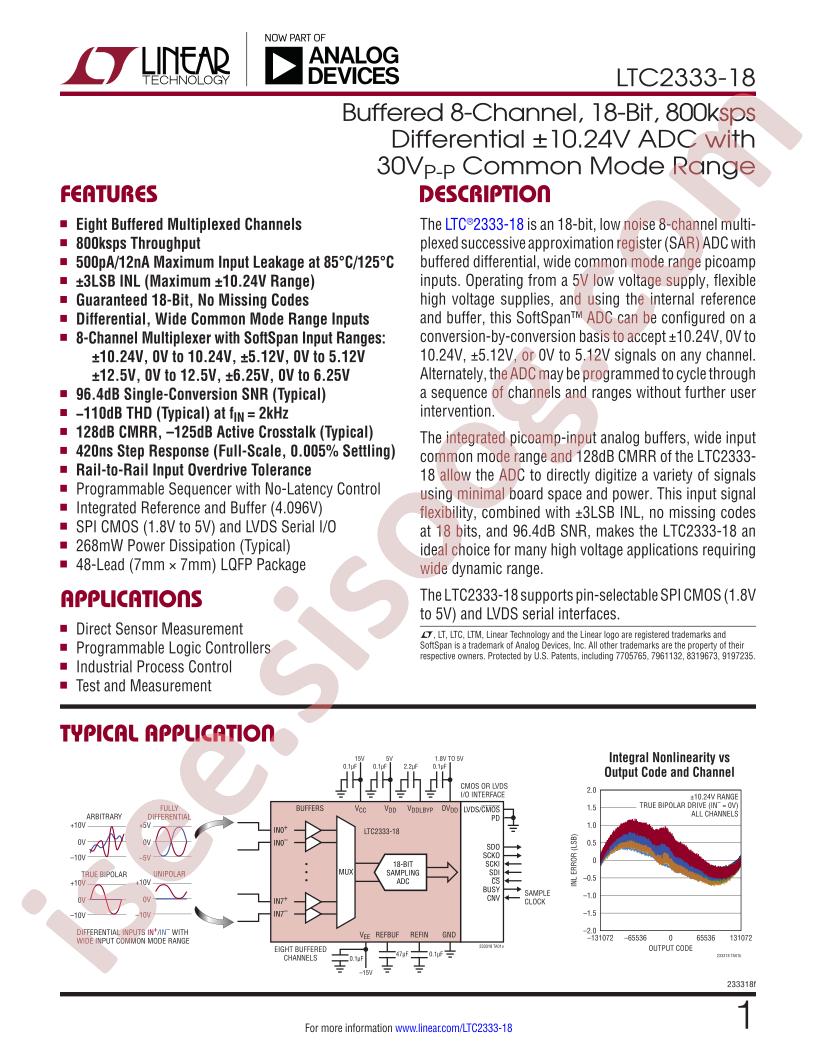

دانلود دیتاشیت LTC2333-18

LTC2333-18 Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Interface: serial
  • resolution: 18Bit
  • Supply Voltage: 7.5V~38V
  • differential input: Yes
  • number of channels: 8
  • sampling frequency: 800kHz
  • Operating Temperature: 0°C~+70°C
  • Package: LQFP-48(7x7)
  • Manufacturer: Analog Devices
  • Series: SoftSpan™
  • Packaging: Tray
  • Part Status: Active
  • Number of Bits: 18
  • Sampling Rate (Per Second): 800k
  • Number of Inputs: 8
  • Input Type: Differential
  • Data Interface: LVDS - Serial
  • Configuration: MUX-ADC
  • Ratio - S/H:ADC: 0:1
  • Number of A/D Converters: 1
  • Architecture: SAR
  • Reference Type: External, Internal
  • Voltage - Supply, Analog: 7.5V ~ 38V
  • Voltage - Supply, Digital: 4.75V ~ 5.25V
  • Features: Simultaneous Sampling
  • Package / Case: 48-LQFP
  • Supplier Device Package: 48-LQFP (7x7)
  • Mounting Type: Surface Mount
  • Base Part Number: LTC2333
  • detail: 18 Bit Analog to Digital Converter 8 Input 1 SAR 48-LQFP (7x7)
