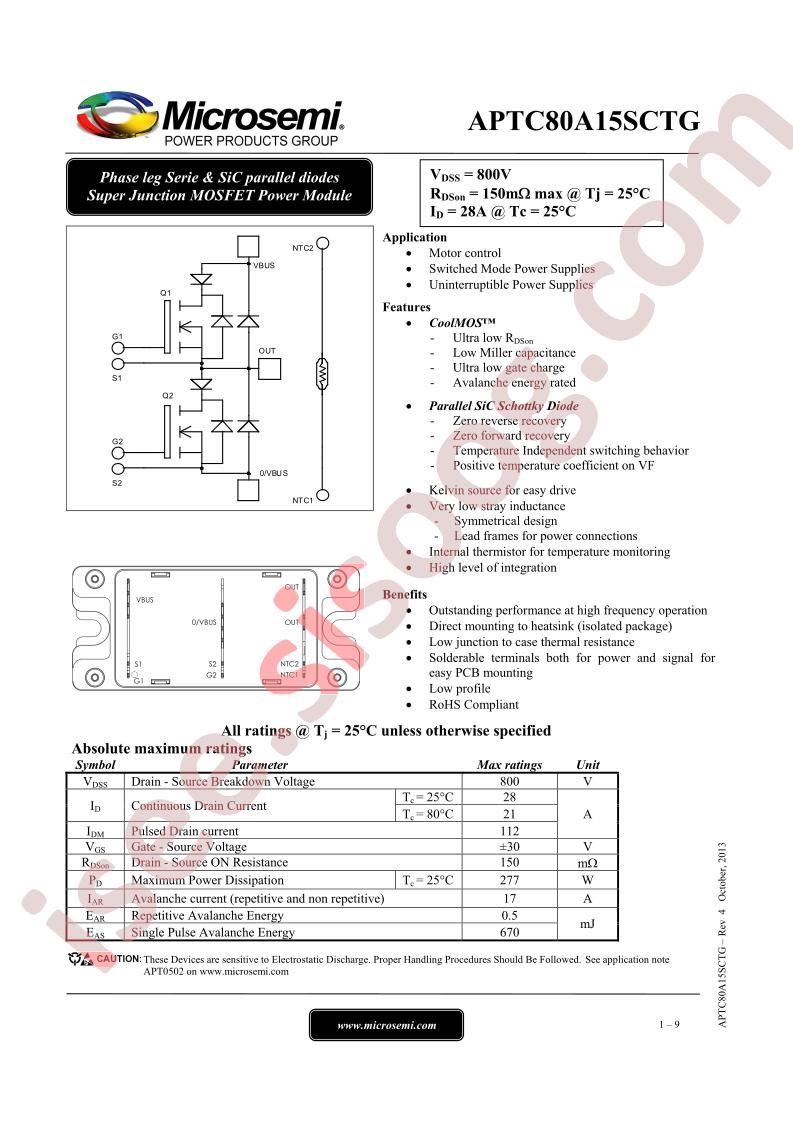

APTC80A15SCTG دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت APTC80A15SCTG	دانلود دیتاشیت

Manufacturer: Microchip Technology
Series: -
Packaging: Bulk
Part Status: Active
FET Type: 2 N-Channel (Half Bridge)
FET Feature: Standard
Drain to Source Voltage (Vdss): 800V
Current - Continuous Drain (Id) @ 25°C: 28A
Rds On (Max) @ Id, Vgs: 150mOhm @ 14A, 10V
Vgs(th) (Max) @ Id: 3.9V @ 2mA
Gate Charge (Qg) (Max) @ Vgs: 180nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds: 4507pF @ 25V
Power - Max: 277W
Operating Temperature: -40°C ~ 150°C (TJ)
Mounting Type: Chassis Mount
Package / Case: SP4
Supplier Device Package: SP4
detail: Mosfet Array 2 N-Channel (Half Bridge) 800V 28A 277W Chassis Mount SP4
