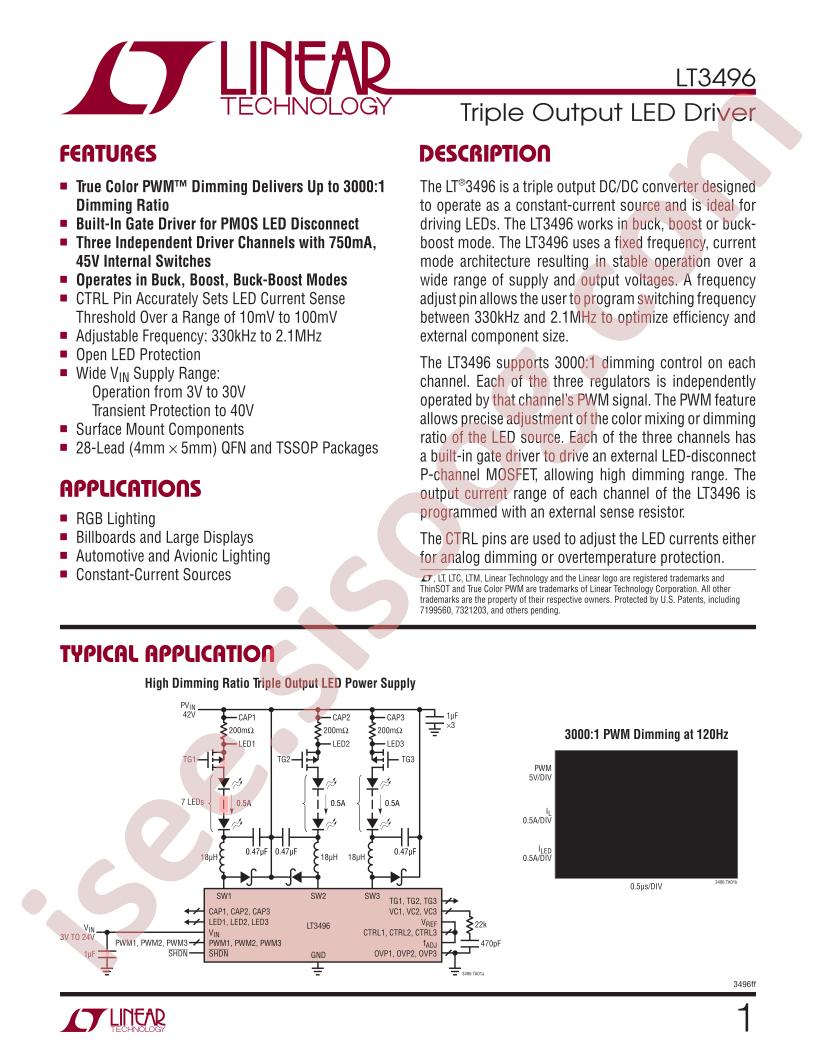

دیتاشیت LT3496IFE#PBF
مشخصات دیتاشیت
| نام دیتاشیت |
LT3496
|
| حجم فایل |
345.733
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
20
|
مشخصات
-
RoHS:
true
-
Type:
DC-DCVoltage Stabilizer
-
Dimming:
Analog;PWM
-
Category:
Nixie Tube Driver/LED Driver/LED Drivers
-
Channels:
3
-
Topology:
Step-down,boost converter
-
Datasheet:
Analog Devices LT3496IFE#PBF
-
Input Voltage:
3V~30V
-
Output Current:
1A
-
Switch Frequency:
330kHz~2.1MHz
-
Operating temperature:
-40°C~+125°C
-
Package:
TSSOP-28-EP
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Internal Switch(s):
Yes
-
Number of Outputs:
3
-
Voltage - Supply (Min):
3V
-
Voltage - Supply (Max):
30V
-
Voltage - Output:
-
-
Current - Output / Channel:
1A (Switch)
-
Frequency:
330kHz ~ 2.1MHz
-
Applications:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
28-TSSOP (0.173", 4.40mm Width) Exposed Pad
-
Supplier Device Package:
28-TSSOP-EP
-
Base Part Number:
LT3496
-
detail:
LED Driver IC 3 Output DC DC Regulator Step-Down (Buck), Step-Up (Boost) Analog, PWM Dimming 1A (Switch) 28-TSSOP-EP
