APTM50TAM65FPG دیتاشیت

مشخصات دیتاشیت

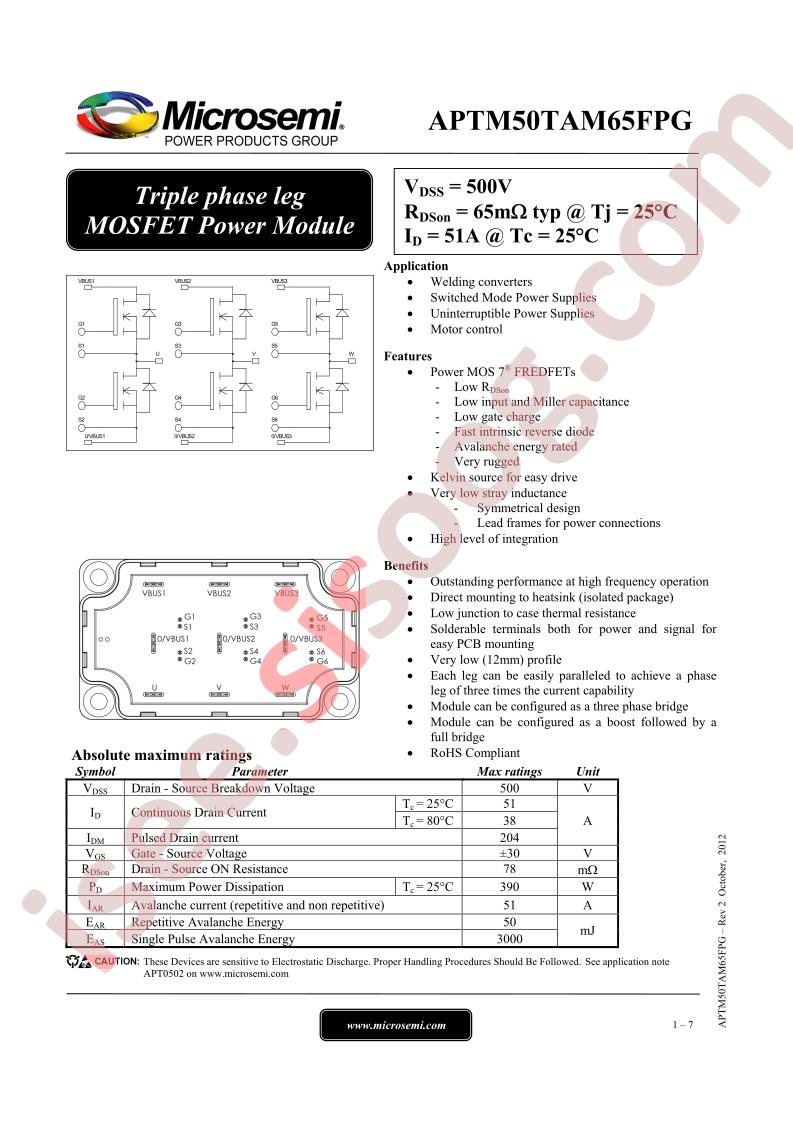

مشاهده دیتاشیت APTM50TAM65FPG	دانلود دیتاشیت

Manufacturer: Microchip Technology
Series: -
Packaging: Bulk
Part Status: Active
FET Type: 6 N-Channel (3-Phase Bridge)
FET Feature: Standard
Drain to Source Voltage (Vdss): 500V
Current - Continuous Drain (Id) @ 25°C: 51A
Rds On (Max) @ Id, Vgs: 78mOhm @ 25.5A, 10V
Vgs(th) (Max) @ Id: 5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs: 140nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds: 7000pF @ 25V
Power - Max: 390W
Operating Temperature: -40°C ~ 150°C (TJ)
Mounting Type: Chassis Mount
Package / Case: SP6
Supplier Device Package: SP6-P
detail: Mosfet Array 6 N-Channel (3-Phase Bridge) 500V 51A 390W Chassis Mount SP6-P
