دیتاشیت LTC3636EUFD#TRPBF

مشخصات دیتاشیت

دانلود دیتاشیت LTpowerCAD II User Guide	LTpowerCAD II User Guide Datasheet

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Output Type: Adjustable
Input Voltage: 3.1V~20V
Output Voltage: 0.6V~5V
Number of Outputs: 2
Switching Frequency: -
Output Current (Max): 6A
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: NO

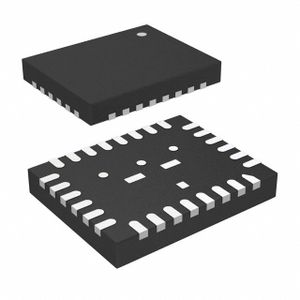

Package: QFN-28-EP(4x5)
Manufacturer: Analog Devices
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Output Configuration: Positive
Voltage - Input (Min): 3.1V
Voltage - Input (Max): 20V
Voltage - Output (Min/Fixed): 0.6V
Voltage - Output (Max): 5V
Current - Output: 6A
Frequency - Switching: Adjustable
Synchronous Rectifier: No
Mounting Type: Surface Mount
Package / Case: 28-WFQFN Exposed Pad
Supplier Device Package: 28-QFN (4x5)
Base Part Number: LTC3636
detail: Buck Switching Regulator IC Positive Adjustable 0.6V 2 Output 6A 28-WFQFN Exposed Pad
