دیتاشیت LTC1625CS#TRPBF

مشخصات دیتاشیت

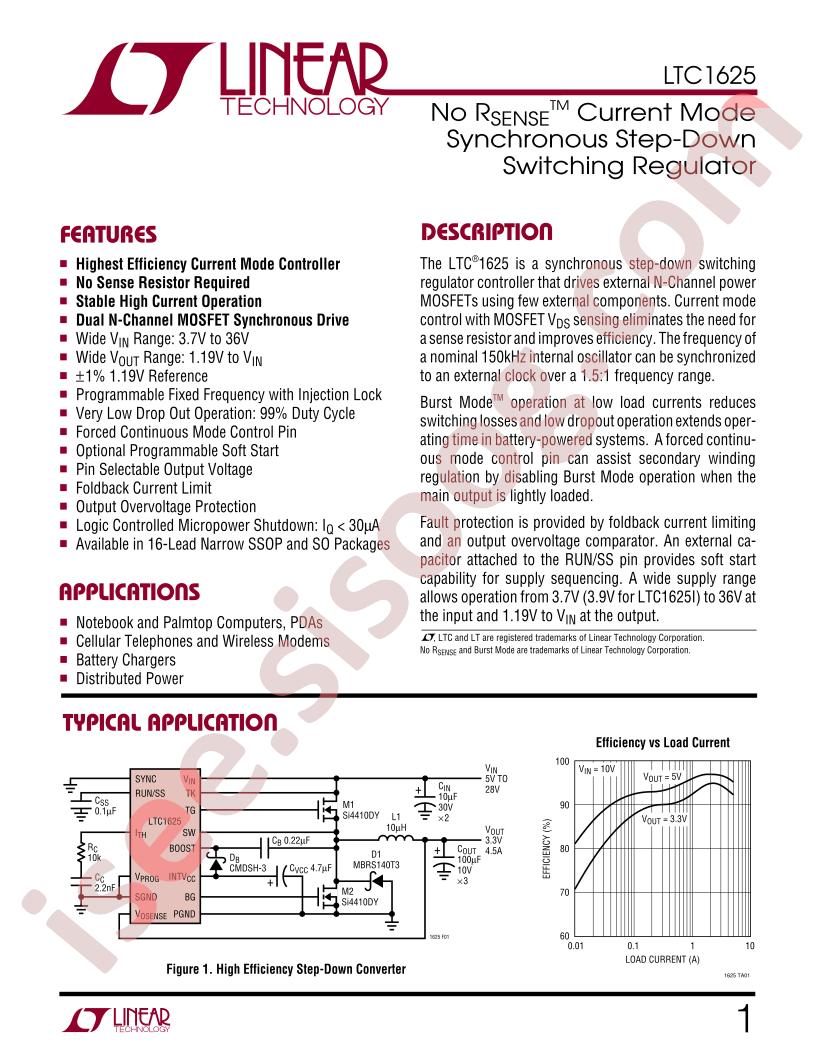

دانلود دیتاشیت LTC1625 Datasheet	LTC1625 Datasheet Datasheet

RoHS: true
Category: Power Supply Chip/DC-DC Controllers
Function: Step-down type;Buck-boost type
Topology: Step-down;Boost
Datasheet: Analog Devices LTC1625CS#TRPBF
Input Voltage: 3.7V~36V
Duty Cycle (Max): 99%
Number of Outputs: 1
Switching Frequency: 150kHz
Operating Temperature: 0°C~+70°C@(TA)
Synchronous Rectification: Yes
Package: SOIC-16
Manufacturer: Analog Devices
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Output Type: Transistor Driver
Output Configuration: Positive or Negative
Output Phases: 1
Voltage - Supply (Vcc/Vdd): 3.7V ~ 36V
Frequency - Switching: 150kHz
Synchronous Rectifier: Yes
Clock Sync: Yes
Serial Interfaces: -
Control Features: Enable, Soft Start
Mounting Type: Surface Mount
Package / Case: 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 16-SOIC
Base Part Number: LTC1625
detail: Buck, Boost Regulator Positive or Negative Output Step-Down, Step-Up/Step-Down DC-DC Controller IC 16-SOIC
