APTGT750U60D4G دیتاشیت

مشخصات دیتاشیت

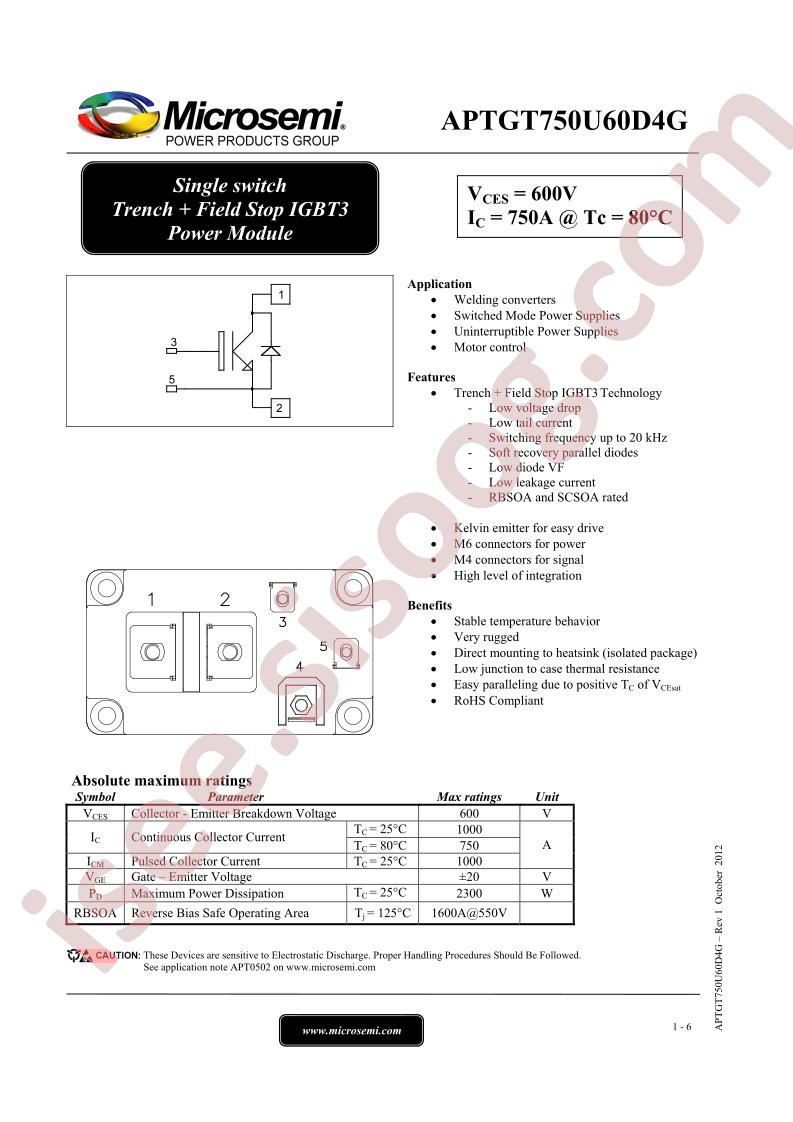

مشاهده دیتاشیت APTGT750U60D4G	دانلود دیتاشیت

Manufacturer: Microchip Technology
Series: -
Packaging: Bulk
Part Status: Active
IGBT Type: Trench Field Stop
Configuration: Single
Voltage - Collector Emitter Breakdown (Max): 600V
Current - Collector (Ic) (Max): 1000A
Power - Max: 2300W
Vce(on) (Max) @ Vge, Ic: 1.9V @ 15V, 800A
Current - Collector Cutoff (Max): 1mA
Input Capacitance (Cies) @ Vce: 49nF @ 25V
Input: Standard
NTC Thermistor: No
Operating Temperature: -40°C ~ 175°C (TJ)
Mounting Type: Chassis Mount
Package / Case: D4
Supplier Device Package: D4
detail: IGBT Module Trench Field Stop Single 600V 1000A 2300W Chassis Mount D4
