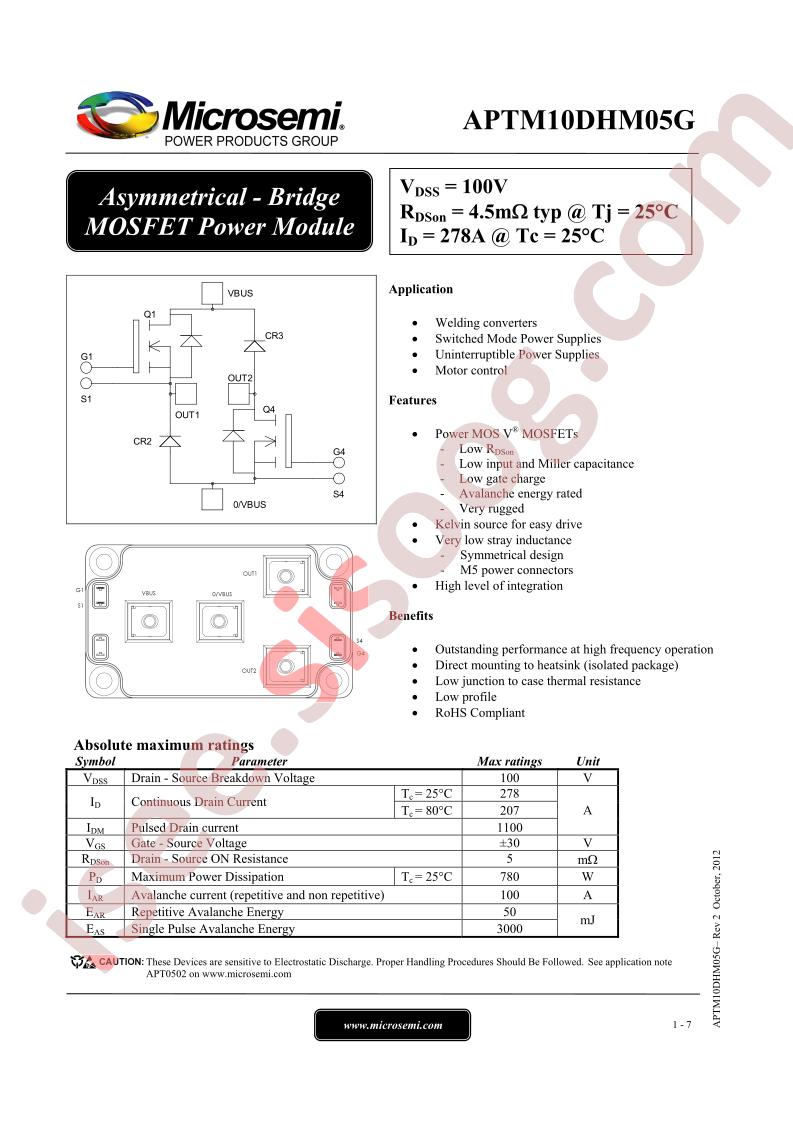

مشاهده دیتاشیت APTM10DHM05G	دانلود دیتاشیت

Manufacturer: Microchip Technology
Series: -
Packaging: Bulk
Part Status: Active
FET Type: 2 N-Channel (Dual) Asymmetrical
FET Feature: Standard
Drain to Source Voltage (Vdss): 100V
Current - Continuous Drain (Id) @ 25°C: 278A
Rds On (Max) @ Id, Vgs: 5mOhm @ 125A, 10V
Vgs(th) (Max) @ Id: 4V @ 5mA
Gate Charge (Qg) (Max) @ Vgs: 700nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds: 20000pF @ 25V
Power - Max: 780W
Operating Temperature: -40°C ~ 150°C (TJ)
Mounting Type: Chassis Mount
Package / Case: SP6
Supplier Device Package: SP6
detail: Mosfet Array 2 N-Channel (Dual) Asymmetrical 100V 278A 780W Chassis Mount SP6
