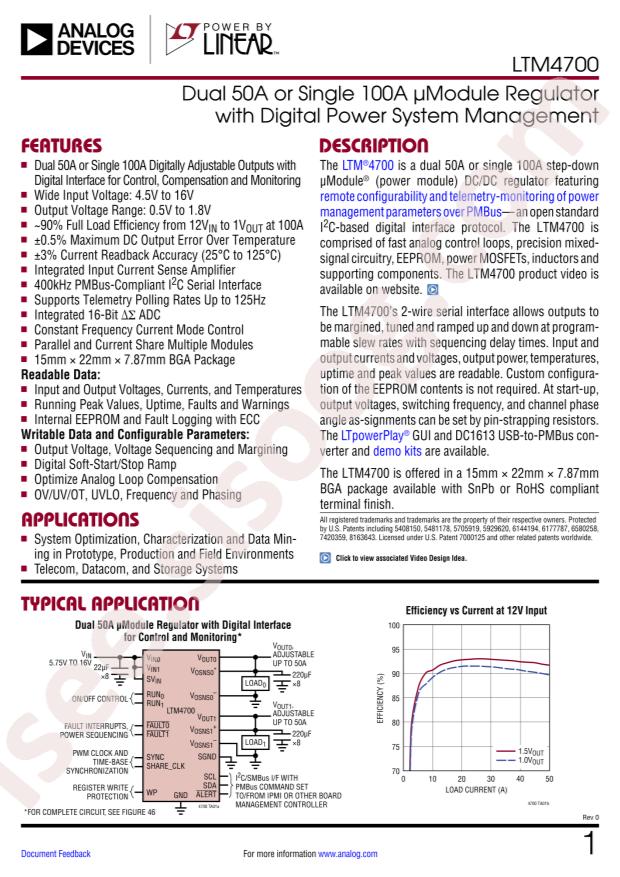

دیتاشیت LTM4700IY#PBF
مشخصات دیتاشیت
| نام دیتاشیت |
LTM4700
|
| حجم فایل |
2913.772
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
126
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Datasheet:
Analog Devices LTM4700IY#PBF
-
Package:
BGA-330
-
Manufacturer:
Analog Devices
-
Series:
µModule®
-
Part Status:
Active
-
Type:
Non-Isolated PoL Module
-
Number of Outputs:
2
-
Voltage - Input (Min):
4.5V
-
Voltage - Input (Max):
16V
-
Voltage - Output 1:
0.5 ~ 1.8V
-
Voltage - Output 2:
0.5 ~ 1.8V
-
Voltage - Output 3:
-
-
Voltage - Output 4:
-
-
Current - Output (Max):
50A, 50A
-
Applications:
ITE (Commercial)
-
Features:
OCP, OTP, OVP, UVLO
-
Operating Temperature:
-40°C ~ 125°C
-
Efficiency:
90%
-
Mounting Type:
Surface Mount
-
Package / Case:
330-BBGA Module
-
Size / Dimension:
0.87" L x 0.59" W x 0.31" H (22.0mm x 15.0mm x 7.9mm)
-
Supplier Device Package:
330-BGA (22x15)
-
Control Features:
-
-
Approval Agency:
-
-
detail:
Non-Isolated PoL Module DC DC Converter 2 Output 0.5 ~ 1.8V 0.5 ~ 1.8V 50A, 50A 4.5V - 16V Input
