APTM50AM24SCG دیتاشیت

مشخصات دیتاشیت

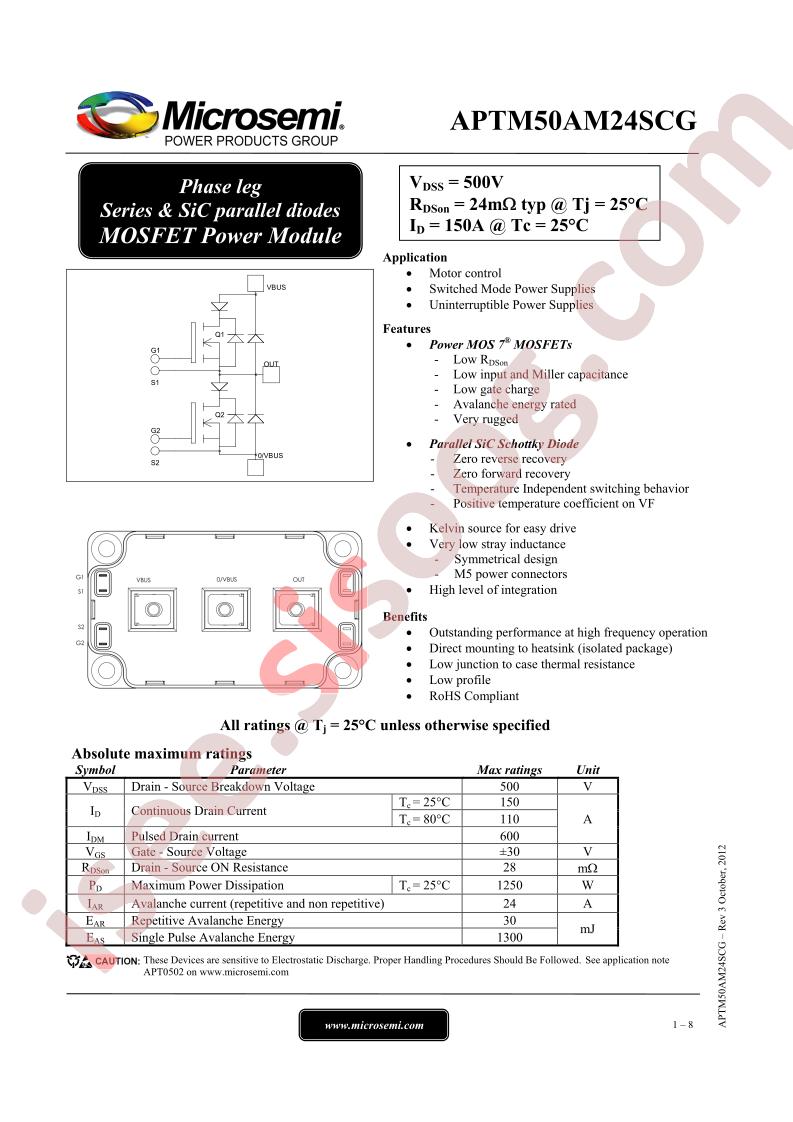

مشاهده دیتاشیت APTM50AM24SCG	دانلود دیتاشیت

Manufacturer: Microchip Technology
Series: -
Packaging: Bulk
Part Status: Active
FET Type: 2 N-Channel (Half Bridge)
FET Feature: Silicon Carbide (SiC)
Drain to Source Voltage (Vdss): 500V
Current - Continuous Drain (Id) @ 25°C: 150A
Rds On (Max) @ Id, Vgs: 28mOhm @ 75A, 10V
Vgs(th) (Max) @ Id: 5V @ 6mA
Gate Charge (Qg) (Max) @ Vgs: 434nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds: 19600pF @ 25V
Power - Max: 1250W
Operating Temperature: -40°C ~ 150°C (TJ)
Mounting Type: Chassis Mount
Package / Case: SP6
Supplier Device Package: SP6
detail: Mosfet Array 2 N-Channel (Half Bridge) 500V 150A 1250W Chassis Mount SP6
