APTGLQ200H120G دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت APTGLQ200H120G	دانلود دیتاشیت

Manufacturer: Microchip Technology
Series: -
Packaging: Bulk
Part Status: Active
IGBT Type: Trench Field Stop
Configuration: Full Bridge
Voltage - Collector Emitter Breakdown (Max): 1200V
Current - Collector (Ic) (Max): 350A
Power - Max: 1000W
Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 200A
Current - Collector Cutoff (Max): 100µA
Input Capacitance (Cies) @ Vce: 12.3nF @ 25V
Input: Standard
NTC Thermistor: No
Operating Temperature: -40°C ~ 175°C (TJ)
Mounting Type: Chassis Mount
Package / Case: SP6
Supplier Device Package: SP6

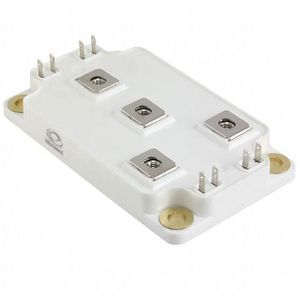

detail: IGBT Module Trench Field Stop Full Bridge 1200V 350A 1000W Chassis Mount SP6
