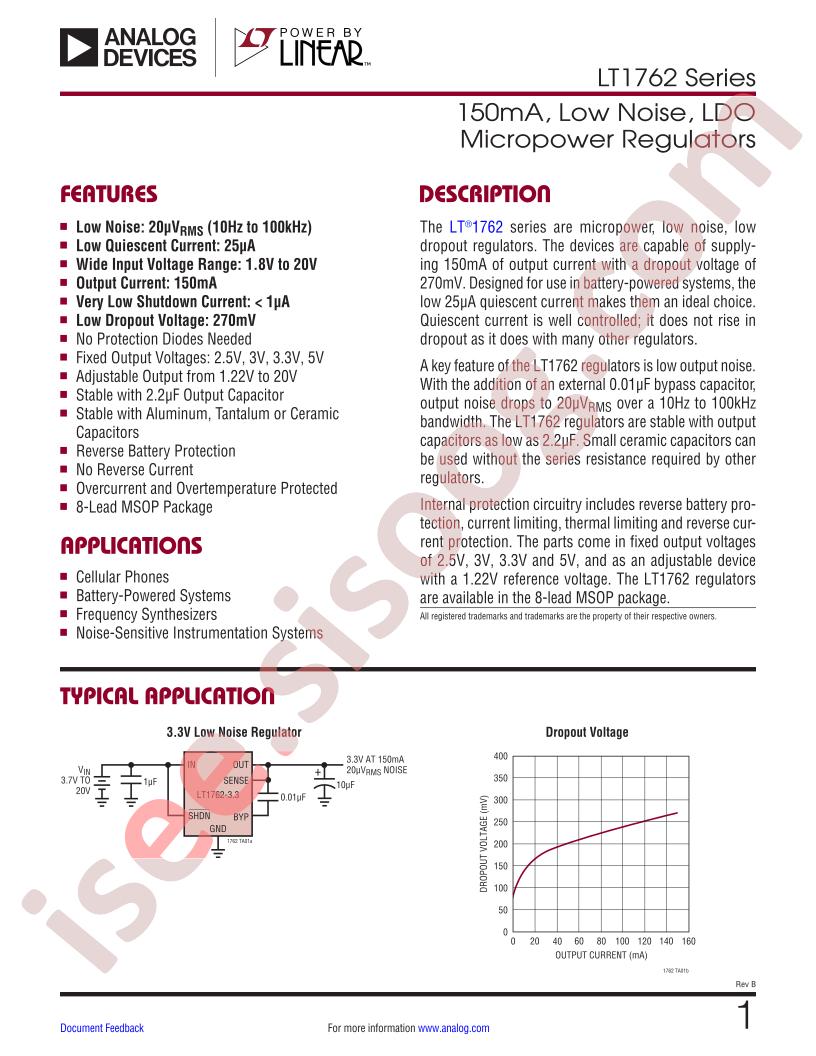

LT1762 Series Datasheet دیتاشیت

LT1762 Series Datasheet

مشخصات دیتاشیت

نام دیتاشیت LT1762 Series Datasheet
حجم فایل 3002.467 کیلوبایت
نوع فایل pdf
تعداد صفحات 18

دانلود دیتاشیت LT1762 Series Datasheet

دانلود دیتاشیت

سایر مستندات

LT1762EMS8-3.3#TRPBF 18 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Analog Devices LT1762EMS8-2.5#PBF
  • Output Current: 150mA
  • Output Voltage: 2.5V
  • Dropout Voltage: 0.4V@(150mA)
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 20V
  • Operating Temperature: -40°C~+125°C
  • Power Supply Rejection Ratio (PSRR): 65dB@(120Hz)
  • Package: MSOP-8
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Output Configuration: Positive
  • Output Type: Fixed
  • Number of Regulators: 1
  • Voltage - Input (Max): 20V
  • Voltage - Output (Min/Fixed): 2.5V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.4V @ 150mA
  • Current - Output: 150mA
  • PSRR: 65dB (120Hz)
  • Control Features: Enable
  • Protection Features: Over Current, Over Temperature, Reverse Polarity
  • Mounting Type: Surface Mount
  • Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
  • Supplier Device Package: 8-MSOP
  • Base Part Number: LT1762
  • detail: Linear Voltage Regulator IC 1 Output 150mA 8-MSOP
