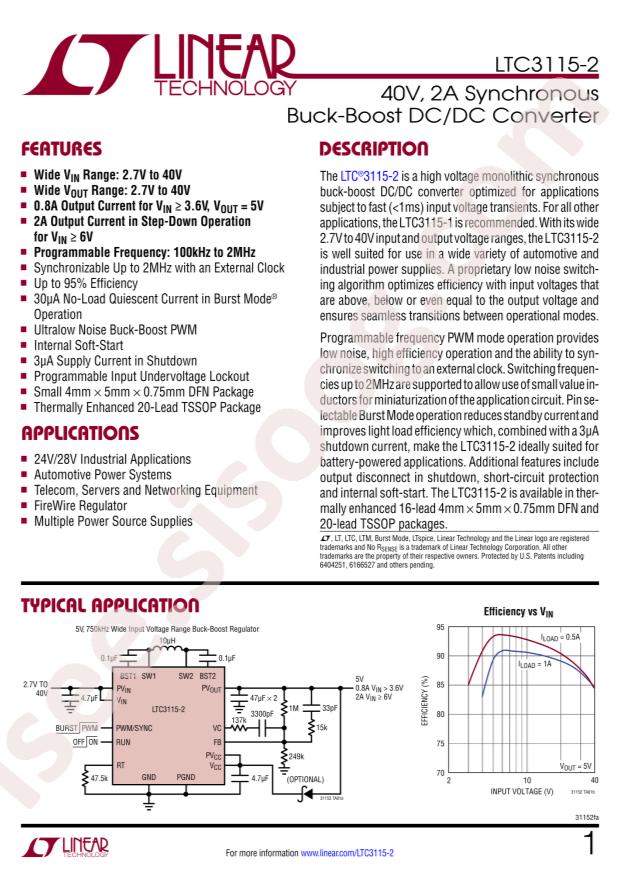

دیتاشیت LTC3115HFE-2#PBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC3115-2 Datasheet |
|---|---|
| حجم فایل | 2810.698 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 42 |
دانلود دیتاشیت LTC3115-2 Datasheet |
LTC3115-2 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Buck-boost type
- Topology: Step-down-Boost
- Datasheet: Analog Devices LTC3115HFE-2#PBF
- Output Type: Adjustable
- Input Voltage: 2.2V~40V
- Output Voltage: 2.7V~40V
- Number of Outputs: 1
- Switching Frequency: 2MHz
- Output Current (Max): 800mA;2A
- Operating Temperature: -40°C~+150°C@(TJ)
- Synchronous Rectification: Yes
- Package: TSOP-20
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Configuration: Positive
- Voltage - Input (Min): 2.2V
- Voltage - Input (Max): 40V
- Voltage - Output (Min/Fixed): 2.7V
- Voltage - Output (Max): 40V
- Current - Output: 800mA, 2A
- Frequency - Switching: 100kHz ~ 2MHz
- Synchronous Rectifier: Yes
- Mounting Type: Surface Mount
- Package / Case: 20-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Supplier Device Package: 20-TSSOP-EP
- Base Part Number: LTC3115
- detail: Buck-Boost Switching Regulator IC Positive Adjustable 2.7V 1 Output 800mA, 2A 20-TSSOP (0.173", 4.40mm Width) Exposed Pad
