دیتاشیت LTC2614CGN#PBF

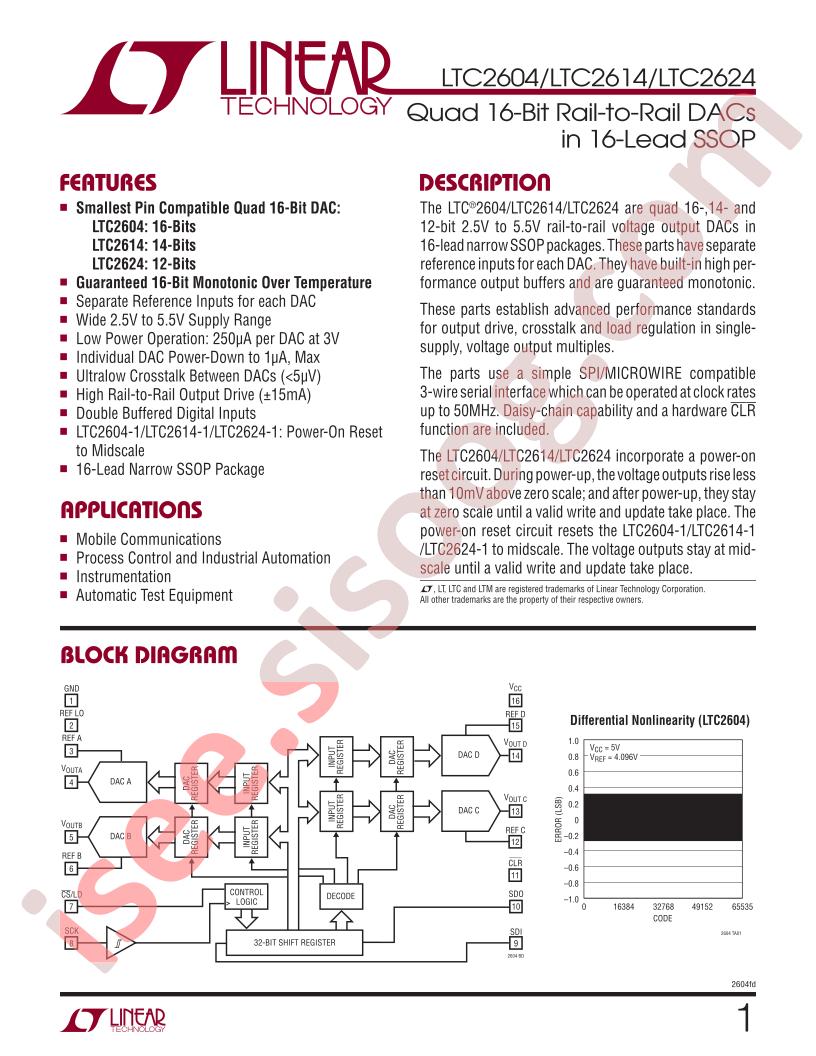

LTC2604, 2614, 2624 Datasheet

مشخصات دیتاشیت

نام دیتاشیت LTC2604, 2614, 2624 Datasheet
حجم فایل 308.621 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

دانلود دیتاشیت LTC2604, 2614, 2624 Datasheet

LTC2604, 2614, 2624 Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Analog Devices LTC2614CGN#PBF
  • Interface: SPI
  • Resolution: 14Bit
  • Output Type: Voltage-缓冲
  • Settling Time: 9us
  • Supply Voltage: 2.5V~5.5V
  • Integral nonlinearity: ±4LSB;±1LSB
  • Operating Temperature: 0°C~+70°C
  • Package: SSOP-16-150mil
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Number of Bits: 14
  • Number of D/A Converters: 4
  • Differential Output: No
  • Data Interface: SPI
  • Reference Type: External
  • Voltage - Supply, Analog: 2.5V ~ 5.5V
  • Voltage - Supply, Digital: 2.5V ~ 5.5V
  • INL/DNL (LSB): ±4, ±1 (Max)
  • Architecture: -
  • Package / Case: 16-SSOP (0.154", 3.90mm Width)
  • Supplier Device Package: 16-SSOP
  • Mounting Type: Surface Mount
  • Base Part Number: LTC2614
  • detail: 14 Bit Digital to Analog Converter 4 16-SSOP
