دیتاشیت LTC7541AJN#PBF

LTC7541A

مشخصات دیتاشیت

نام دیتاشیت LTC7541A
حجم فایل 169.27 کیلوبایت
نوع فایل pdf
تعداد صفحات 4

دانلود دیتاشیت LTC7541A

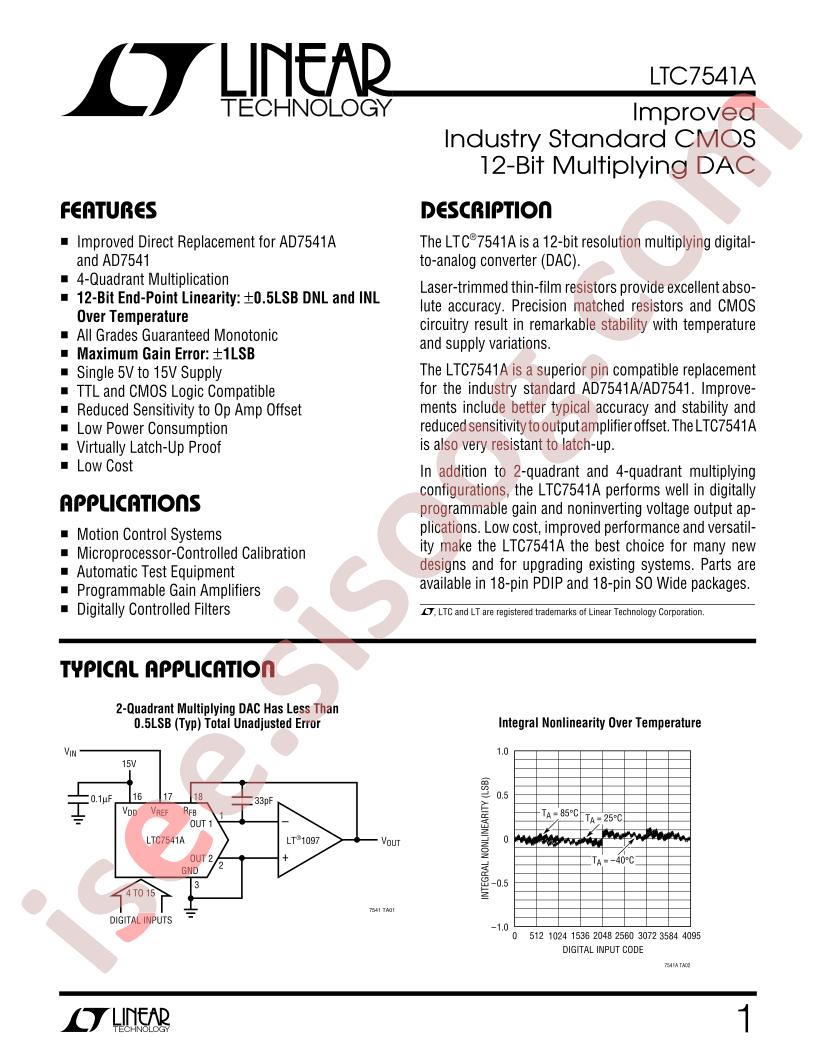

LTC7541A Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Analog Devices LTC7541AJN#PBF
  • Interface: Parallel
  • Resolution: 12Bit
  • Output Type: Current-非缓冲
  • Settling Time: 600ns
  • Supply Voltage: 5V~16V
  • Integral nonlinearity: ±1LSB
  • Operating Temperature: 0°C~+70°C
  • Package: PDIP-18
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Number of Bits: 12
  • Number of D/A Converters: 1
  • Differential Output: Yes
  • Data Interface: Parallel
  • Reference Type: External
  • Voltage - Supply, Analog: 5V ~ 16V
  • Voltage - Supply, Digital: 5V ~ 16V
  • INL/DNL (LSB): ±1 (Max), ±1 (Max)
  • Architecture: R-2R
  • Package / Case: 18-CDIP (0.300", 7.62mm)
  • Supplier Device Package: 18-CDIP
  • Mounting Type: Through Hole
  • Base Part Number: LTC7541
  • detail: 12 Bit Digital to Analog Converter 1 18-CDIP
