دیتاشیت LTC1265CS#PBF

مشخصات دیتاشیت

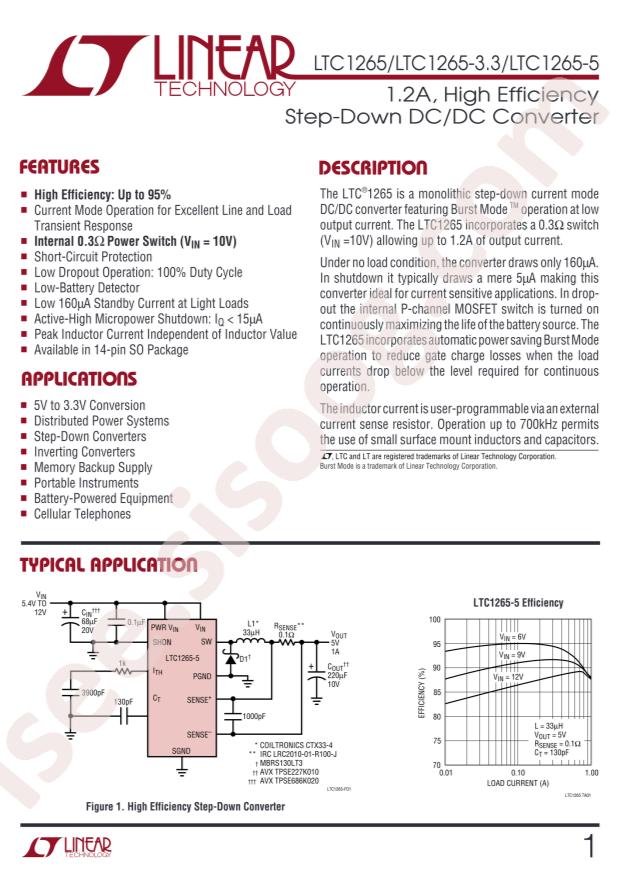

دانلود دیتاشیت LTC1265(-3.3, -5)	LTC1265(-3.3, -5) Datasheet

Manufacturer: Linear Technology/Analog Devices
Series: -
Packaging: Tube
Part Status: Active
Function: Step-Down, Step-Up/Step-Down
Output Configuration: Positive or Negative
Topology: Buck, Buck-Boost, SEPIC
Output Type: Adjustable
Number of Outputs: 1
Voltage - Input (Min): 4V
Voltage - Input (Max): 13V
Voltage - Output (Min/Fixed): 1.25V
Voltage - Output (Max): 13V
Current - Output: 1.2A (Switch)
Frequency - Switching: Up to 700kHz
Synchronous Rectifier: No
Operating Temperature: 0°C ~ 70°C (TA)
Mounting Type: Surface Mount
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 14-SOIC
Base Part Number: LTC1265
detail: Buck, Buck-Boost, SEPIC Switching Regulator IC Positive or Negative Adjustable 1.25V 1 Output 1.2A (Switch) 14-SOIC (0.154", 3.90mm Width)
